Quick Code: BB-141529
GNE60KRRB 60mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Qty:
Product Specification
Alternative Part Number
GNE60-XL-KRR-B; GNE60XLKRRB
Inner Race Width (B)
68mm
Inside Dia (d)
60mm
Outer Race Width (C)
33mm
Outer Ring Profile
Spherical
Outside Dia (D)
130mm
Reference
GNE60-KRR-B
Brand
INA
Quick Order Code
BB-141529
Product Description

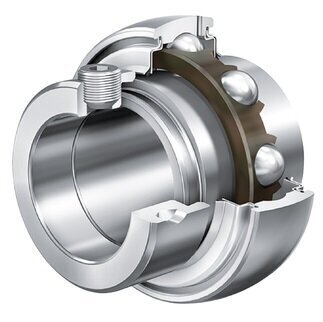

GNE60KRRB 60mm INA Bearing Insert
INA bearing insert with spherical outer ring, location by eccentric locking collar and R seals on both sides.
Features:
Sizes (see below diagram):
d: 60mm
D: 130mm
B: 68mm
B1: 52mm
C: 33mm
C2: 37.2mm
Ca: 11.2mm
D1: 109mm
d1: 79.4mm
d3 max: 89mm
S: 23mm
W: 5mm
Mass: 2.97kg
Basic dynamic load rating, radial: 87000N
Basic static load rating, radial: 52000N
Fatigue limit load, radial: 2650N
