Bearings Housed & Flanged Bearings INA Housed Bearings INA Bearing Inserts
Quick Code: BB-141537

GNE100KRRB 100mm Bore INA Bearing Insert

GNE100KRRB 100mm Bore INA Bearing Insert
Also Try
£604.51 Was £671.68 exc VAT (£725.41 inc VAT)
In Stock   Free Delivery Available   Next Day Order by 4pm
Buy Now
Qty:
Product Specification
Alternative Part Number
GNE100-XL-KRR-B; GNE100XLKRRB; GNE100KRRBS
Inner Race Width (B)
109.4mm
Inside Dia (d)
100mm
Outer Race Width (C)
49mm
Outer Ring Profile
Spherical
Outside Dia (D)
215mm
Reference
GNE100-KRR-B
Brand
INA
Quick Order Code
BB-141537
Product Description

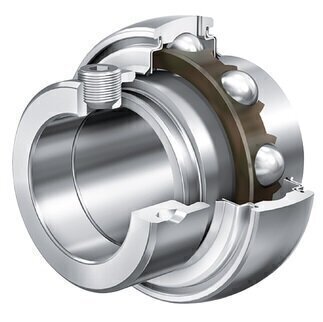

GNE100KRRB 100mm INA Bearing Insert

INA bearing insert with spherical outer ring, location by eccentric locking collar and R seals on both sides.

Features:
  • Grease lubrication
  • Lifetime lubrication, free from maintenance
  • Sealed on both sides
  • Operating temperature range: -20 deg C to +120 deg C

    Sizes (see below diagram):

    d: 100mm
    D: 215mm
    B: 109.4mm
    B1: 86mm
    C: 49mm
    C2: 59.4mm
    Ca: 16.7mm
    D1: 182.8mm
    d1: 137.1mm
    d3 max: 145mm
    S: 39,.5mm
    W: 6mm
    Mass: 11.41kg
    Basic dynamic load rating, radial: 184000N
    Basic static load rating, radial: 141000N
    Fatigue limit load, radial: 5700N
