Bearings Housed & Flanged Bearings INA INA Bearing Inserts
Quick Code: BB-141381

GAY100NPPB 1inch Bore INA Bearing Insert

£14.69 exc VAT (£17.63 inc VAT)
In Stock   Free Delivery Available   Next Day Delivery Available Order by 4pm
Buy Now
Qty:
Product Specification
Inside Dia (d)
1inch = 25.4mm
Outside Dia (D)
52mm
Outer Race Width (C)
15mm
Inner Race Width (B)
27mm
Outer Ring Profile
Spherical
RHP Equivalent
1225-1G
Alternative Part Number
GAY100-NPP-B-AS2/V; GAY100NPPBAS2/V
Reference
GAY100NPPB
Brand
INA
Quick Order Code
BB-141381
Product Description

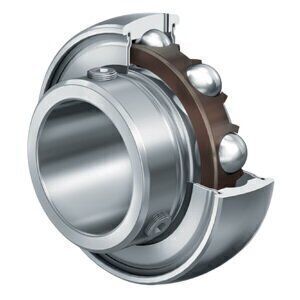

GAY100NPPB 1inch Bore INA Bearing Insert

INA bearing insert with spherical outer ring, grub screws and P seals on both sides.

Features:
  • Grease lubrication
  • Lifetime lubrication, free from maintenance
  • Sealed on both sides
  • Operating temperature range: -20 deg C to +120 deg C

    Sizes (see below diagram):

    d: 1inch
    d: 25.4mm
    D: 52mm
    B: 27mm
    A: 5mm
    C: 15mm
    Ca: 3.9mm
    d1: 33.6mm
    d2: 30.4mm
    S: 7.5mm
    W: 3/32inch
    Mass: 0.15kg
    Basic dynamic load rating, radial: 14900N
    Basic static load rating, radial: 7800N
    Fatigue limit load, radial: 395N
