Quick Code: BB-141268
E60KRR 60mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Product Specification
Inner Race Width (B)
77.9mm
Inside Dia (d)
60mm
Outer Race Width (C)
24mm
Outer Ring Profile
Cylindrical
Outside Dia (D)
110mm
RHP Equivalent
1160-60DEC
Reference
E60-KRR
Brand
INA
Quick Order Code
BB-141268
Product Description

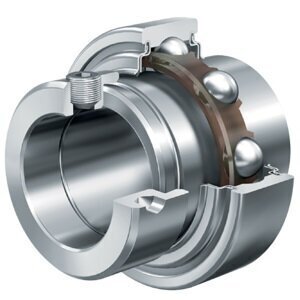

E60KRR INA Bearing Insert with 60mm Bore
INA bearing insert with cylindrical outer ring, eccentric locking collar and R seals on both sides.
Features:
Sizes (see below diagram):
d: 60mm
D: 110mm
B: 77.9mm
B1: 61.9mm
C: 24mm
C2: 29mm
D1: 94.5mm
d1: 76.5mm
d3 max: 84mm
S: 31mm
W: 5mm
Mass: 1.82kg
Basic dynamic load rating, radial: 56000N
Basic static load rating, radial: 36000N
