Quick Code: BB-141234

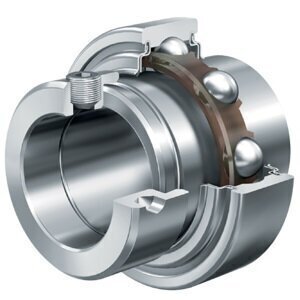

E50KRR 50mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Product Specification
Inner Race Width (B)
62.8mm
Inside Dia (d)
50mm
Outer Race Width (C)
22mm
Outer Ring Profile
Cylindrical
Outside Dia (D)
90mm
RHP Equivalent
1150-50DEC
Reference
E50-KRR
Brand
INA
Quick Order Code
BB-141234
Product Description
E50KRR INA Bearing Insert with 50mm Bore
INA bearing insert with cylindrical outer ring, eccentric locking collar and R seals on both sides.
Features:
Sizes (see below diagram):
d: 50mm
D: 90mm
B: 62.8mm
B1: 49.2mm
C: 22mm
C2: 26.4mm
D1: 77.3mm
d1: 62.8mm
d3 max: 69mm
S: 24.6mm
W: 5mm
Mass: 1kg
Basic dynamic load rating, radial: 37500N
Basic static load rating, radial: 23200N
