Quick Code: BB-141270
E45KRR 45mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Product Specification
Inner Race Width (B)
56.5mm
Inside Dia (d)
45mm
Outer Race Width (C)
22mm
Outer Ring Profile
Cylindrical
Outside Dia (D)
80mm
RHP Equivalent
1145-45DEC
Reference
E45-KRR
Brand
INA
Quick Order Code
BB-141270
Product Description

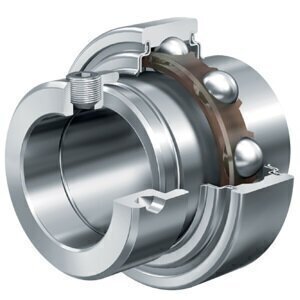

E45KRR INA Bearing Insert with 45mm Bore
INA bearing insert with cylindrical outer ring, eccentric locking collar and R seals on both sides.
Features:
Sizes (see below diagram):
d: 45mm
D: 85mm
B: 56.5mm
B1: 42.9mm
C: 22mm
C2: 26.4mm
D1: 72.3mm
d1: 57.9mm
d3 max: 63mm
S: 21.4mm
W: 5mm
Mass: 0.75kg
Basic dynamic load rating, radial: 34500N
Basic static load rating, radial: 20400N
Fatigue limit load, radial: 1030N
