Quick Code: BB-141281
E45KLL 45mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Qty:
Product Specification
Inner Race Width (B)
56.5mm
Inside Dia (d)
45mm
Outer Race Width (C)
22mm
Outer Ring Profile
Cylindrical
Outside Dia (D)
85mm
Reference
E45-KLL
Brand
INA
Quick Order Code
BB-141281
Product Description
E45KLL INA Bearing Insert with 45mm Bore

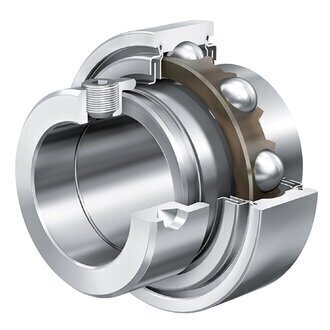

INA bearing insert with cylindrical outer ring, eccentric locking collar and L seals on both sides.
Features:
Sizes (see below diagram):
d: 45mm
D: 85mm
B: 56.5mm
B1: 42.9mm
C: 22mm
C2: 26.4mm
D1: 72.3mm
d1: 57.9mm
d3 max: 63mm
S: 21.4mm
W: 5 mm
Mass: 0.85kg
Basic dynamic load rating, radial: 34500N
Basic static load rating, radial: 20400N
Fatigue limit load, radial: 1030N
