Quick Code: BB-141227
E40KRR 40mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Product Specification
Inner Race Width (B)
56.5mm
Inside Dia (d)
40mm
Outer Race Width (C)
21mm
Outer Ring Profile
Cylindrical
Outside Dia (D)
80mm
RHP Equivalent
1140-40DEC
Reference
E40-KRR
Brand
INA
Quick Order Code
BB-141227
Product Description

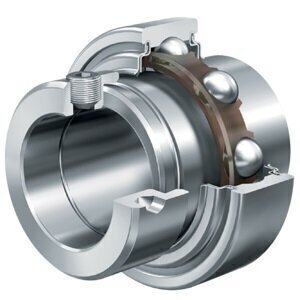

E40KRR INA Bearing Insert with 40mm Bore
INA bearing insert with cylindrical outer ring, eccentric locking collar and R seals on both sides.
Features:
Sizes (see below diagram):
d: 40mm
D: 80mm
B: 56.5mm
B1: 42.9mm
C: 21mm
C2: 23.5mm
D1: 68.3mm
d1: 52.3mm
d3 max: 58mm
S: 21.4mm
W: 5mm
Mass: 0.75kg
Basic dynamic load rating, radial: 34500N
Basic static load rating, radial: 19800N
Fatigue limit load, radial: 1010N
