Quick Code: BB-132164
E30KLL 30mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Product Specification
Inner Race Width (B)
48.5mm
Inside Dia (d)
30mm
Outer Race Width (C)
18mm
Outer Ring Profile
Cylindrical
Outside Dia (D)
62mm
Reference
E30-KLL
Brand
INA
Quick Order Code
BB-132164
Product Description

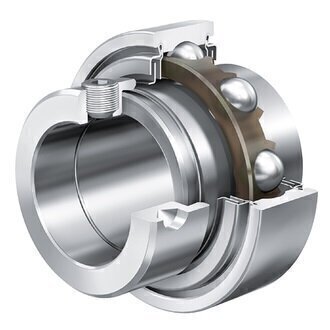

E30KLL INA Bearing Insert with 30mm Bore
INA bearing insert with cylindrical outer ring, eccentric locking collar and L seals on both sides.
Features:
Sizes (see below diagram):
d: 30mm
D: 62mm
B: 48.5mm
B1: 36.5mm
C: 18mm
C2: 20.6mm
D1: 52mm
d1: 40.2mm
d3 max: 44mm
S: 18.3mm
W: 4mm
Mass: 0.39kg
Basic dynamic load rating, radial: 20700N
Basic static load rating, radial: 11300N
Fatigue limit load, radial: 570N
