PME25 25mm INA 4 Bolt Round Flanged Bearing
Also Try
INA 4 Bolt Flanged
INA Bearing Inserts
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Stainless Steel Bearings - Budget
Buy Now
Qty:
Product Specification
Alternative Part Number
PME25-XL-N; PME25XLN; PME25N
Bearing Insert
GRAE25NPPB
Bolt Hole Centre (J)
90mm
Bore Size (d)
25mm
Brand
INA
Height (B)
31mm
Outside Dia (H)
115mm
RHP Equivalent
FC25EC
Reference
PME25
Quick Order Code
BB-142472
Product Description

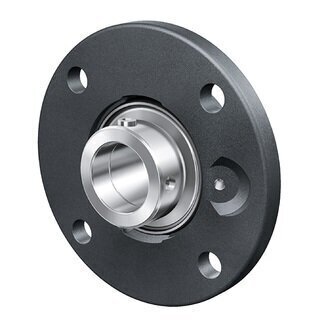

PME25 25mm INA 4 Bolt Round Flanged Bearing
Normal duty four bolt round flanged bearing unit complete with eccentric locking collar bearing insert with P seals. The cast iron housing includes a grease nipple for re-lubrication.
It has a centring spigot which gives concentric alignment of the housings and relieves the fixing screws of any radial forces.
The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.
Sizes (see below diagram):
d 25 mm
H 115 mm
B 31 mm
A 19 mm
A1 9 mm
A2 2,5 mm
d3 max 37,5 mm
J 90 mm
N 9 mm
Q M6
S 2 mm
U 21 mm
Z 70 mm Tolerance: h8
m 0,73 kg Mass
Cr 14900 N Basic dynamic load rating, radial
C0r 7800 N Basic static load rating, radial
ME05 Designation of housing
GRAE25-XL-NPP-B Designation of bearing
KASK05 Bearing end cap, closed design. To be ordered separately.
Slot for bearing end cap
