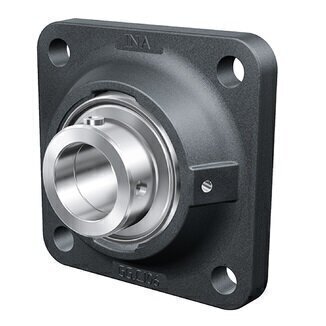

RCJ20 20mm INA 4 Bolt Flanged Bearing
Also Try
INA 4 Bolt Round
INA Bearing Inserts
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Qty:
Product Specification
Alternative Part Number
RCJ20-XL-N; RCJ20XL; RCJ20N
Bolt Hole Centre (J)
63.5mm
Bore Size (d)
20mm
Brand
INA
Height (U)
45.6mm
Length/Width (L)
86mm
RHP Equivalent
SF20DEC
Reference
RCJ20
Quick Order Code
BB-142037
Product Description
RCJ20 20mm INA 4 Bolt Flanged Bearing
Normal duty cast iron 4 bolt flanged housing units complete with eccentric locking collar insert with R seals. The cast iron housing includes a grease nipple for re-lubrication.
The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.
d 20 mm
L 86 mm
U 45,6 mm
A 29 mm
A1 10 mm
A2 19 mm
B1 43,7 mm
d3 max 33 mm
J 63,5 mm
N 11,5 mm
Q M6
V 68 mm
m 0,65 kg Mass
Cr 13600 N Basic dynamic load rating, radial
C0r 6600 N Basic static load rating, radial
CJ04 Designation of housing
GE20-XL-KRR-B Designation of bearing
KASK04 Bearing end cap, closed design. To be ordered separately.
Slot for bearing end cap
