Quick Code: BB-142272

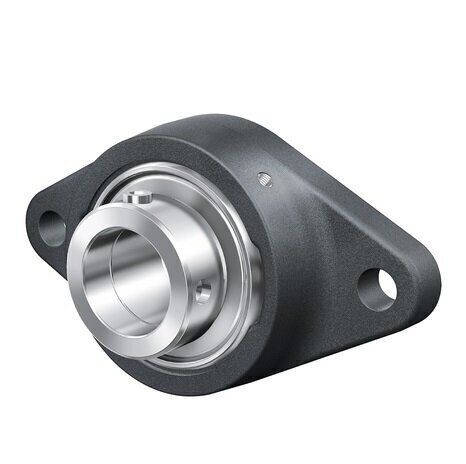

RCJTZ60 60mm INA 2 Bolt Flanged Bearing
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Bearing Inserts
INA Pillow Block Housed
INA Take Up Units
Buy Now
Qty:
Product Specification
Alternative Part Number
RCJTZ60-XL; RCJTZ60XL
Bolt Hole Centre (J)
202mm
Bore Size (d)
60mm
Brand
INA
Height (U)
76.9mm
Insert
GE60KRRB
Length (H)
238mm
Width (L)
138mm
Reference
RCJTZ60
Quick Order Code
BB-142272
Product Description
RCJTZ60 60mm INA 2 Bolt Flanged Bearing
Normal duty two bolt oval flanged cast iron housing unit complete with grub screw insert with R seals. The cast iron housing includes a grease nipple for re-lubrication.
The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.
Sizes (see diagram below):
d 60 mm
H 238 mm
U 76,9 mm
A 42 mm
A1 16 mm
A2 30 mm
B1 77,9 mm
d3 max 84 mm
J 202 mm
L 138 mm
N 18 mm
Q Rp1/8
T1 4 mm
V 138 mm
Z 130 mm Tolerance: h8
m 3,9 kg Mass
Cr 56000 N Basic dynamic load rating, radial
C0r 36000 N Basic static load rating, radial
CJTZ12 Designation of housing
GE60-XL-KRR-B Designation of bearing
