Quick Code: BB-141854
RCJTY60 60mm INA 2 Bolt Flanged Bearing
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Bearing Inserts
INA Pillow Block Housed
INA Take Up Units
A Belts (13mm x 8mm)
Buy Now
Qty:
Product Specification
Alternative Part Number
RCJTY60-XL; RCJTY60XL; RCJTY60N
Bolt Hole Centre (J)
202mm
Bore Size (d)
60mm
Brand
INA
Height (U)
73.7mm
Length (H)
238mm
RHP Equivalent
SFT60
Width (L)
138mm
Reference
RCJTY60
Quick Order Code
BB-141854
Product Description

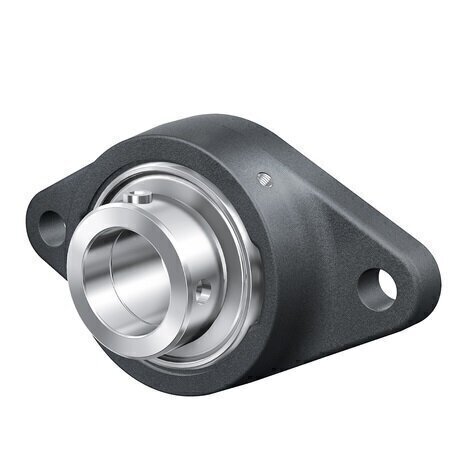

RCJTY60 60mm INA 2 Bolt Flanged Bearing
Normal duty two bolt oval flanged cast iron housing unit complete with grub screw insert with R seals. The cast iron housing includes a grease nipple for re-lubrication.
The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.
Sizes (see diagram below):
d 60 mm
H 238 mm
U 73,7 mm
A 46 mm
A1 16 mm
A2 34 mm
B 65,1 mm
J 202 mm
L 138 mm
N 18 mm
Q Rp1/8
V 138 mm
m 3,46 kg Mass
Cr 56000 N Basic dynamic load rating, radial
C0r 36000 N Basic static load rating, radial
CJT12 Designation of housing
GYE60-XL-KRR-B Designation of bearing
KASK12 Bearing end cap, closed design. To be ordered separately.
Slot for bearing end cap
