RCJT70 70mm INA 2 Bolt Flanged Bearing
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Bearing Inserts
INA Pillow Block Housed
INA Take Up Units
Buy Now
Qty:
Product Specification
Alternative Part Number
RCJT70-XL; RCJT70XL; RCJT70
Bolt Hole Centre (J)
216mm
Bore Size (d)
70mm
Brand
INA
Height (U)
82.6mm
Insert
GE70KRRB
Length (H)
258mm
RHP Equivalent
SFT70DEC
Width (L)
160mm
Reference
RCJT70
Quick Order Code
BB-142263
Product Description

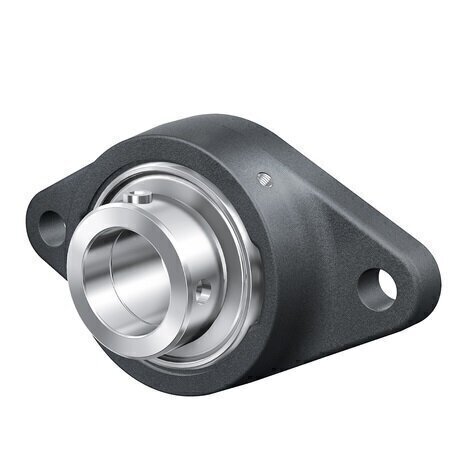

RCJT70 70mm INA 2 Bolt Flanged Bearing
Normal duty two bolt oval flanged cast iron housing unit complete with grub screw insert with R seals. The cast iron housing includes a grease nipple for re-lubrication.
The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.
Sizes (see diagram below):
d 70 mm
H 258 mm
U 82,6 mm
A 57 mm
A1 18 mm
A2 38 mm
B1 66 mm
d3 max 96 mm
J 216 mm
L 160 mm
N 21 mm
Q M6
V 160 mm
m 6,15 kg Mass
Cr 66000 N Basic dynamic load rating, radial
C0r 44000 N Basic static load rating, radial
CJT13/14 Designation of housing
GE70-XL-KRR-B Designation of bearing
