Quick Code: BB-142392

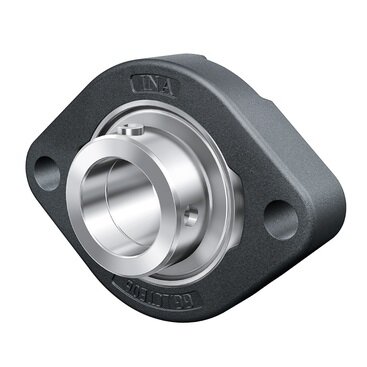

FLCTEY12 12mm INA 2 Bolt Flanged Bearing

£26.86 exc VAT (£32.23 inc VAT)
In Stock   Free Delivery over £100   Next Day Order by 4pm
Buy Now
Qty:
Product Specification
Alternative Part Number
FLCTEY12-XL; FLCTEY12XL
Bolt Hole Centre (J)
63.5mm
Bore Size (d)
12mm
Brand
INA
Height (U)
24.4mm
Insert
AY12NPPB
Length (H)
81mm
RHP Equivalent
LFTC12A
Width (L)
58.7mm
Reference
FLCTEY12
Quick Order Code
BB-142392
Product Description
FLCTEY12 12mm INA 2 Bolt Flanged Bearing

Normal duty two bolt oval flanged cast iron housing unit complete with grub screw insert with P seals. There is no relubrication facility.

The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.

Sizes (see diagram below):

d 12 mm
H 81 mm
U 24,4 mm
A1 15 mm
A2 8,4 mm
B 22 mm
J 63,5 mm
L 58,7 mm
N 6,6 mm
m 0,28 kg Mass
Cr 10100 N Basic dynamic load rating, radial
C0r 4750 N Basic static load rating, radial
LCTE03 Designation of housing
AY12-XL-NPP-B Designation of bearing
