Quick Code: BB-699148

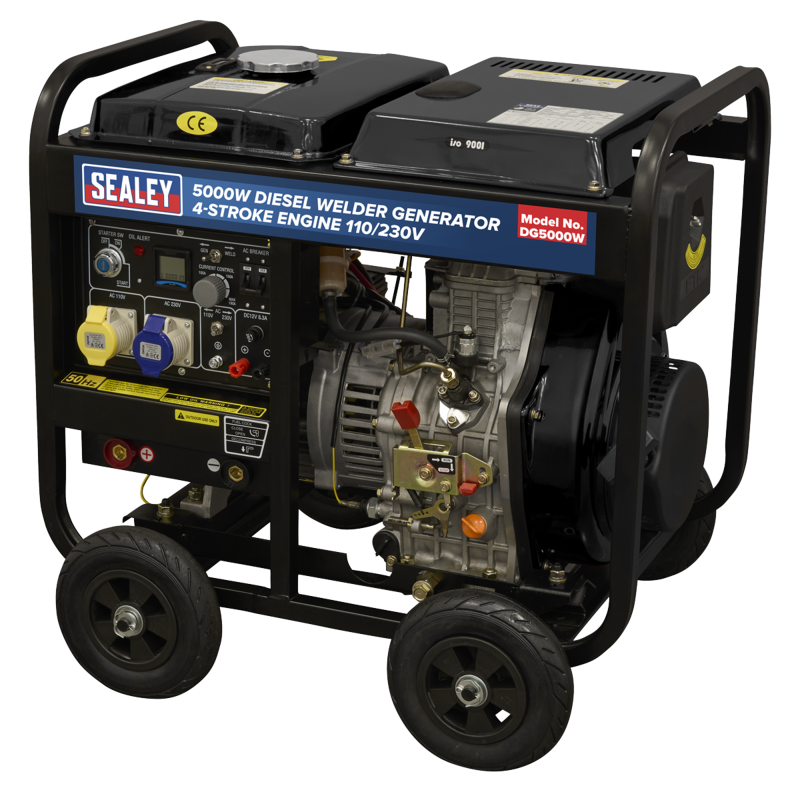

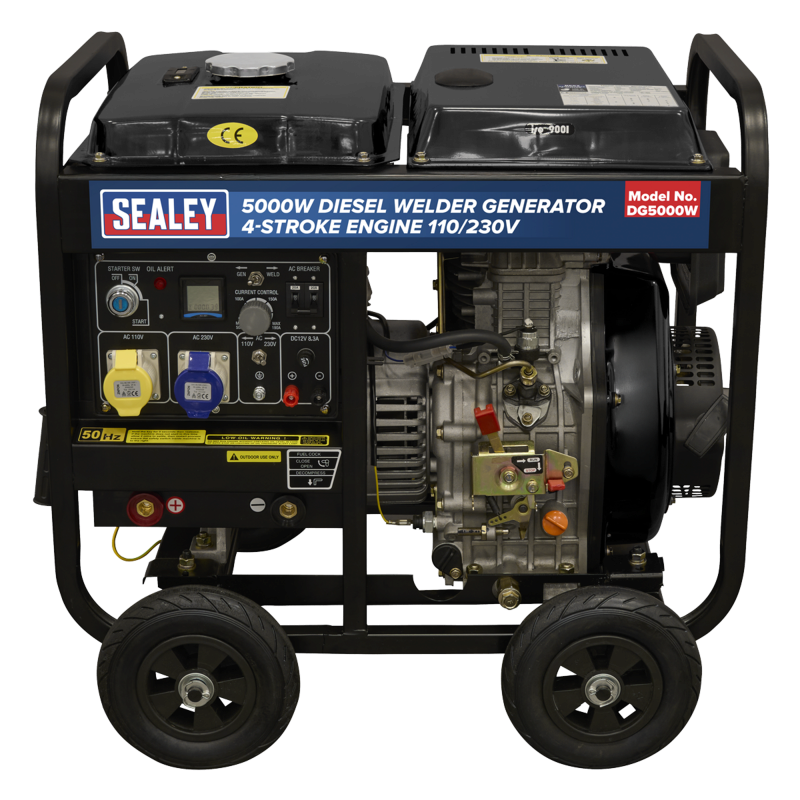

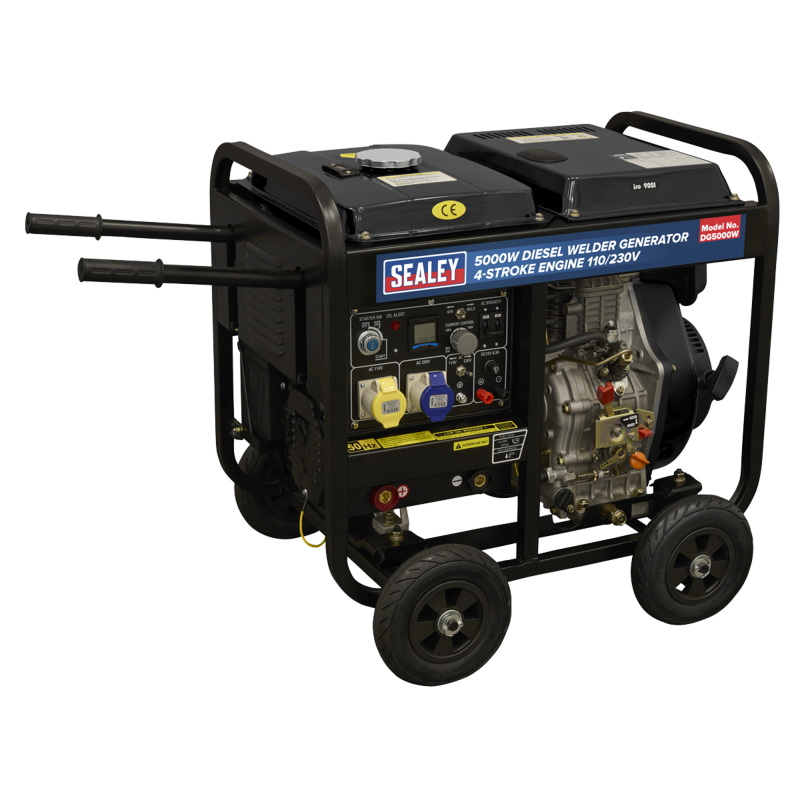

Sealey DG5000W 5000W Diesel Welder Generator 4-Stroke Engine 110/230V
Also Try
Inspection Lamps
Torches
Cable Reels
Site Lighting & Portable Lights
Head Torches
Buy Now
Product Specification
Brand
Sealey
Continuous Power Rating
4600W
Current Rating
20A
Dimensions (W x D x H)
720 x 485 x 600mm
Electrode Capacity
1.6-4mm
Fuel
Diesel
Fuel Tank
15L
IP Rating
IP23
Maximum Power Rating
5000W
Maximum Running Time
12hrs
Model No
DG5000W
Motor Power
5.7kw/3600rpm
Motor Type
4-Stoke Diesel
Nett Weight
120kg
Noise Rating
97dB(A)
Oil Capacity
1.65L
Output
110/230V
Performance Class
G1
Power Rating Category
COP
Quality Class
A
Rated Power Factor
(COS ∮) 0.8 kW
Welding Current
80-180A
Reference
DG5000W
Quick Order Code
BB-699148
Product Description
DUAL VOLTAGE OUTPUT Supplies both 110V and 230V AC for flexible power options on-site.WELDER FUNCTION Built-in electric welding capability with adjustable current ranges from 80180A.
DIESEL ENGINE POWER Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5.0kW.
RECOIL KEY START Manual recoil start, and Key Start Function.
LARGE FUEL TANK 15L capacity allows extended operation without frequent refuelling.
WELDING CAPACITY Rated for 80180A welding current and suitable for electrodes from 2.5-4mm.
COMPACT PORTABLE Rugged frame with two pull handles and four wheels for easy transportation around the worksite.
IDEAL FOR REMOTE WORK Perfect for construction, agricultural, and industrial applications.

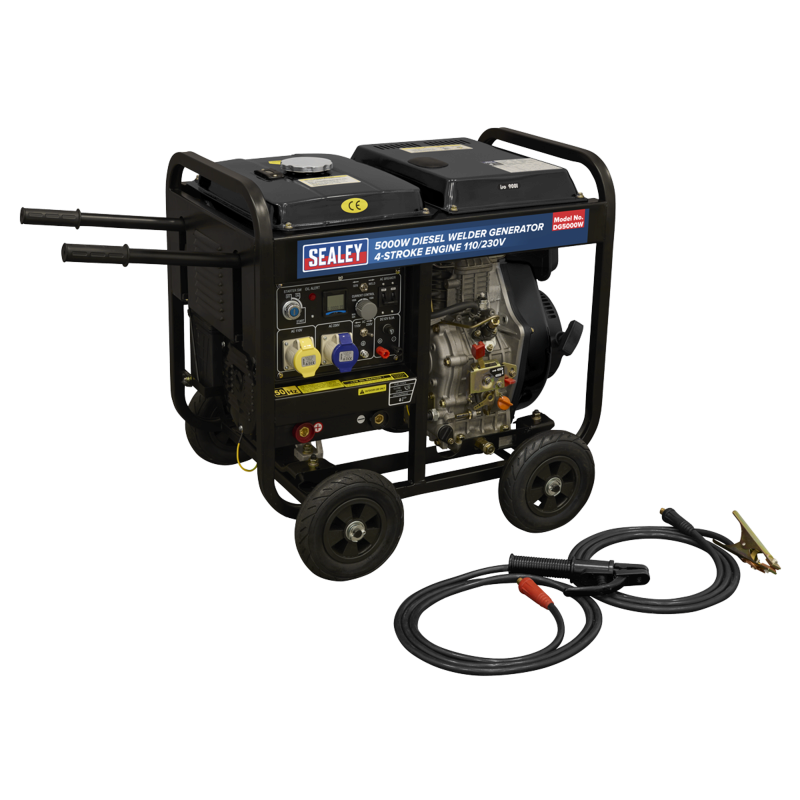

SUPPLIED WITH Two Keys, 2.8m electrode holder and 2.8m earth clamp.
