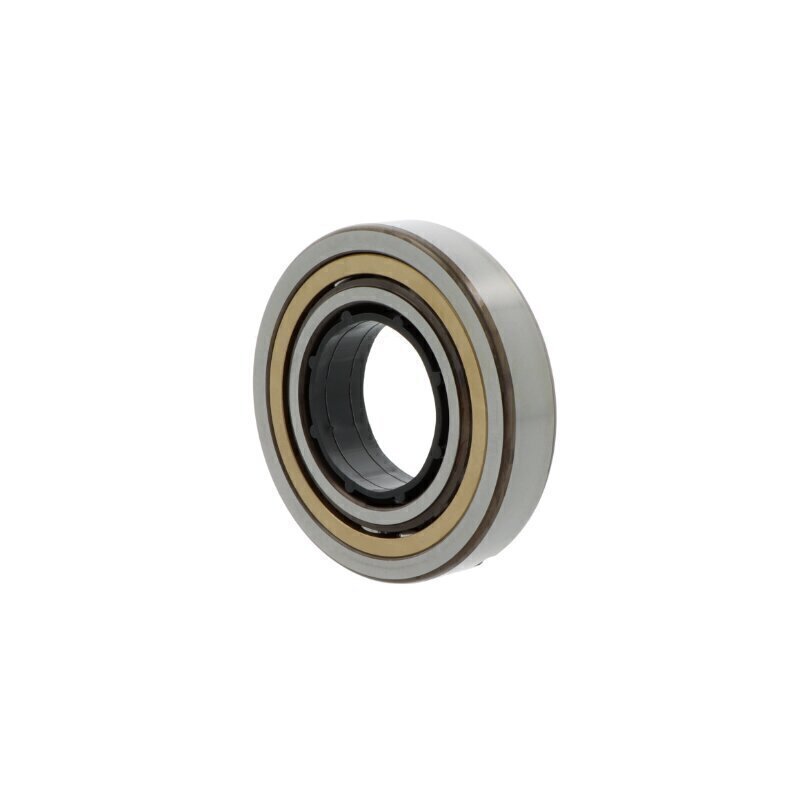

QJ230-N2-MPA-C3 NKE Four Point Contact Angular Ball Bearing 150mm x 270mm x 45mm
Also Try
Angular Contact Bearings
Axial Angular Contact Bearings
Stainless Steel Angular Contact Bearings
UKF Angular Contact Bearings
Buy Now
Product Specification
Brand
NKE
Cage
Brass cage
Clearance
C3
Design
Split inner ring
Groove(s) on outer ring
2 retaining grooves on outer ring shifted by 180 degrees
Inside Diameter
150mm
Outside Diameter
270mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
45mm
Reference
QJ230N2MPAC3
Additional Reference:
10180024
Equivalent to:
QJ230N2MPAC3
Quick Order Code
BB-503248
Product Description
QJ230-N2-MPA-C3 NKE Four point contact bearing
