Sealey PFC101S Viking Industrial Engine Crane 1 Tonne
Also Try
Fixed
Hydraulic Rams
Buy Now
Qty:
Product Specification
Brand
Viking
Height Jib Down
n/a
Height Legs Folded
1550mm
Height of Frame
105mm
Length
1600mm
Length Legs Extended
n/a
Length of Jib Position 1
960mm
Length of Jib Position 2
1053mm
Length of Jib Position 3
1152mm
Length of Jib Position 4
1250mm
Length of Jib Position 5
1350mm
Lifting Capacity in Position 1
1000kg
Lifting Capacity in Position 2
900kg
Lifting Capacity in Position 3
800kg
Lifting Capacity in Position 4
700kg
Lifting Capacity in Position 5
600kg
Max. Lift Ht at Jib Position 1
2080mm
Max. Lift Ht at Jib Position 2
2140mm
Max. Lift Ht at Jib Position 3
2190mm
Max. Lift Ht at Jib Position 4
2250mm
Max. Lift Ht at Jib Position 5
2300mm
Model No
PFC101S
Nett Weight
96kg
Note
n/a
Rear Width
390mm
Width Front Frame
1129mm
Width Inside Front Frame
1025mm
Reference
PFC101S
Quick Order Code
BB-556100
Product Description

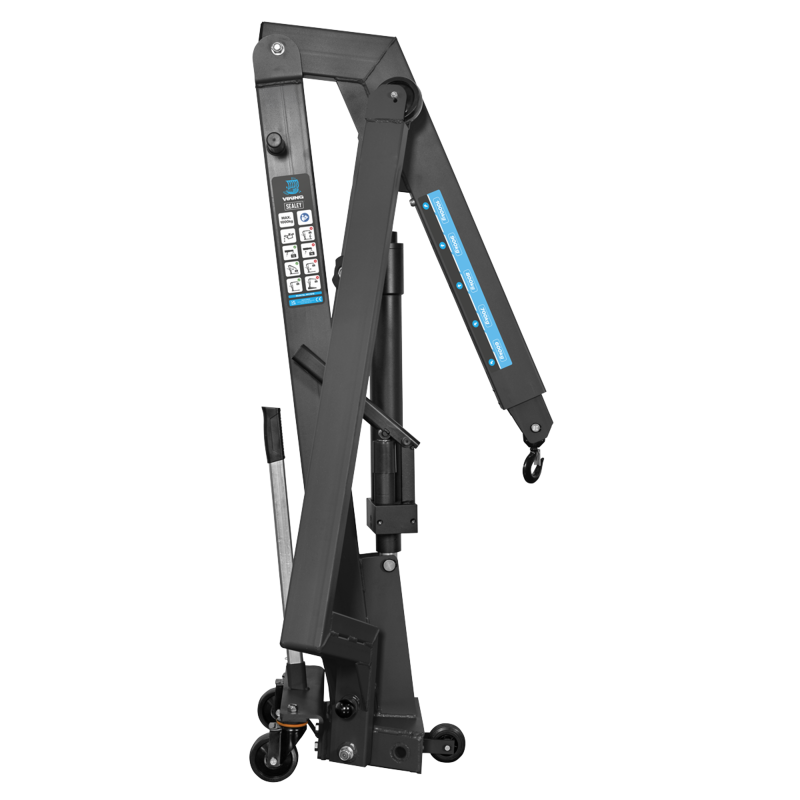

FOLDING PARALLEL LEGS - The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc.SAFETY RELEASE - Hand operated dead man's control to prevent accidental lowering.

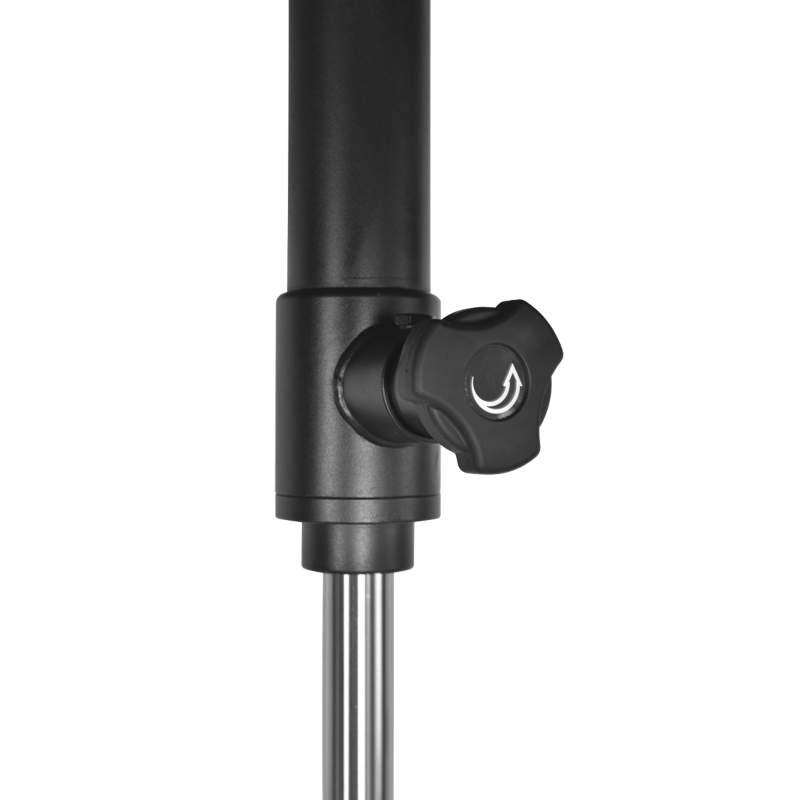

CONTROLLABLE RELEASE - Manually controlled descent speed.
FIVE POSITION JIB - The jib can be extended and locks in five positions between 960-1350mm.
TURNING PUMP HANDLE - The hydraulic unit and handle rotates by 200 aiding use where space is limited.
NON FLOOR MARKING WHEELS - Strong nylon and fibreglass wheels front and rear. Rear castor wheels come with brakes. An additional wheel for ease of movement when folded, all are non floor marking.
3 Year guarantee.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
