Bearings
Rod End Bearings
Female Rod Ends
Female Rod Ends (Steel on Steel)
Quick Code: BB-531705

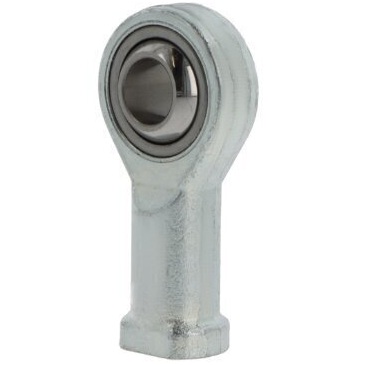

CM16-OK-M16 Steel Housing, Steel Outer Race Female Rod End
Also Try
Female Rod Ends (Gr-Nylon Race)
Female Rod Ends (Bronze Race)
Female Rod Ends (Stainless Steel, PTFE Liner)
Fluro Rod Ends - Series G - Female
Female Rod Ends (PTFE Liner)
Buy Now
Qty:
Product Specification
Bore Size
16mm
Lubrication hole
Without lubrication groove
Maintenance
Maintenance-free version
Thread
M16
Thread Direction
Left Hand
Thread type
Male thread
Version
Steel/steel
Reference
CM16OKM16
Additional Reference:
10194800
Brand
Tescubal
Quick Order Code
BB-531705
Product Description
Self-lubricating rod ends, male thread, series K, DIN ISO 12240-4, maintenance freeHOUSING: up to size 12 automatic steel 11SMnPb30 (1.0718), from size 14 carbon steel C40 (1.1186),
galvanized surface free of Cr VI
OUTER RING: sintered steel impregnated with high efficiency lubricating fluid
INNER RING: tempered, ground and polished steel for bearings 100Cr6 (1.3505)
MAINTENANCE: maintenance free
TEMPERATURE RANGE: -30° C to +120° C
