Black Malleable Iron Pipe Fittings

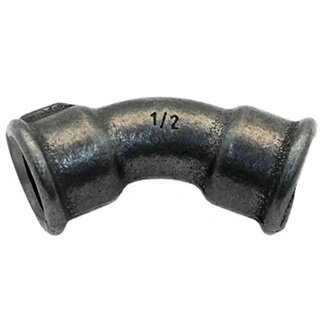

Female Bend 45 Deg Black, Fig 41
Quick Code: BB-660931
1 1/2inch BSPP Female Equal Bend 45 Degree Beaded DIN Black Malleable Iron, Fig 41
Also Try
Female Reducing Socket Black, Fig 240
Female Equal Socket Black, Fig 220
Female Equal Socket Black, Fig 270
Female Union Black, Fig 340
Male Female Equal Elbow 90 Degree Black, Fig 92
Buy Now
Product Specification
Finish
Black
Material
Malleable Iron
Thread Size
1 1/2inch BSPP
Type/Standard
Beaded - DIN
Reference
MI24B45
Equivalent to:
EE-MI41-112N
Brand
Vale
Quick Order Code
BB-660931
Product Description
A premium quality 1 1/2" BSPP female equal bend fitting with a 45-degree angle, engineered from high-grade malleable iron and finished in black. This precision-manufactured fitting delivers reliable performance in demanding industrial piping systems and is fully interchangeable with the George Fischer (GF) range.
Material & Manufacturing Standards:
- Manufactured from premium ASTM A-197, EN 1562:1997 and ISO 5922 compliant malleable iron
- Built to conform with BS EN 10242, ISO 49:1994 and DIN 2950 dimensional specifications
- Features precision-cut threads in accordance with ISO 7/1 standards
- Beaded design to DIN specifications
Performance Specifications:
- Maximum working pressure: 25 bar (360 psi) at temperatures from -30°C to +120°C
- Reduced working pressure: 20 bar (290 psi) at temperatures from +120°C to +300°C
Ideal Applications:
- Compressed air systems
- Industrial process piping
- General fluid transfer systems
- Steam distribution networks (within specified temperature ranges)
The 45-degree angle design allows for flexible pipe routing while maintaining excellent flow characteristics and structural integrity in high-pressure applications.
