Quick Code: BB-401946

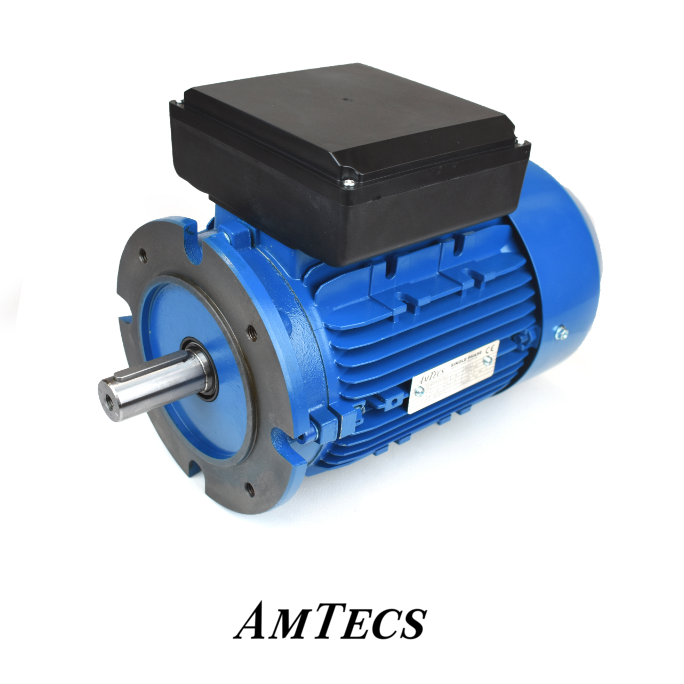

Amtecs IE1 0.37kW 2 Pole Single Phase Perm Cap B14L Large Face Mount Electric Motor, 71 Frame
Also Try
Flange Mounted Electric Motors (B5)
Foot Mounted Electric Motors (B3)
Foot & Face Mounted Electric Motors (B34)
Foot & Flange Mounted Electric Motors (B35)
Buy Now
Qty:
Product Specification
Brand
Amtecs
Frame Size
71
Mounting
B14L Large Face
Output Rating (hp)
0.5
Output Rating (kW)
0.37
Shaft Size
14mm
Speed
3000rpm
Reference
28412037R
Quick Order Code
BB-401946
Product Description
This range of aluminium single phase running capacitor multi-mount motors is suitable for many different industrial applications. The running capacitor design is suitable for low starting torque applications such as fans. The multi-mount design enables the feet to be removed or moved to provide left, right or top terminal box configurations. Lower starting torque 0.3 - 0.7 times the rated torque.
ApplicationsKey Features
