Quick Code: BB-518412

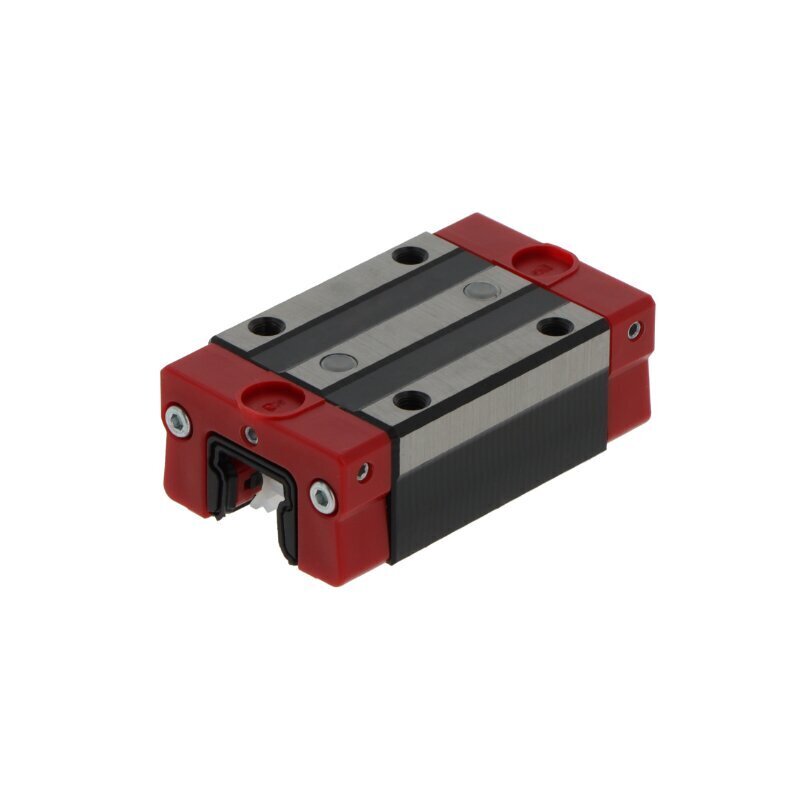

LLTHC35 U T1 P3 Ewellix Carriage
The LLTHC35 U T1 P3 Ewellix Carriage is a precision-engineered linear motion component designed for smooth, accurate movement along linear guide rails in demanding industrial applications. This block carriage combines exceptional engineering with robust construction, making it ideal for automation systems, machinery, robotics, and precision positioning applications requiring reliable performance in mid-to-large scale installations.
Key Features:
- Series & Design: 35 series block carriage in standard design version for versatile industrial applications
- Precision Engineering: Four-row ball rolling elements with P3 tolerance class for exceptional accuracy and superior load distribution
- Light Preload: Optimized preload settings for enhanced rigidity while maintaining smooth motion and reduced backlash
- Durable Construction: Steel and plastic materials engineered to withstand demanding industrial environments and extended service life
- Comprehensive Sealing System: End seals, sealing strips, and inner seals provide effective contamination protection and durability
- Relubrication Capability: Equipped with lubrication nipple for convenient maintenance and extended operational life
- Streamlined Design: No ball chain for cost-effective, simplified construction without compromising performance
- Temperature Range: Operates reliably between -20°C and +80°C, suitable for diverse climatic and environmental conditions
- Premium Ball Rolling Elements: High-quality balls ensure smooth, consistent operation and reliable performance
Ideal Applications:
The LLTHC35 U T1 P3 carriage is perfectly suited for automated manufacturing systems, CNC machinery, robotic positioning systems, precision assembly lines, and industrial equipment requiring high-precision linear motion with excellent load capacity and durability. Its standard design version provides optimal balance between performance and installation flexibility for mid-to-large scale industrial applications.
This carriage represents an excellent choice for applications demanding reliable linear motion where precision, durability, and low maintenance are essential. Its integrated sealing system and relubrication features minimize maintenance requirements while maximizing uptime in critical industrial environments.
