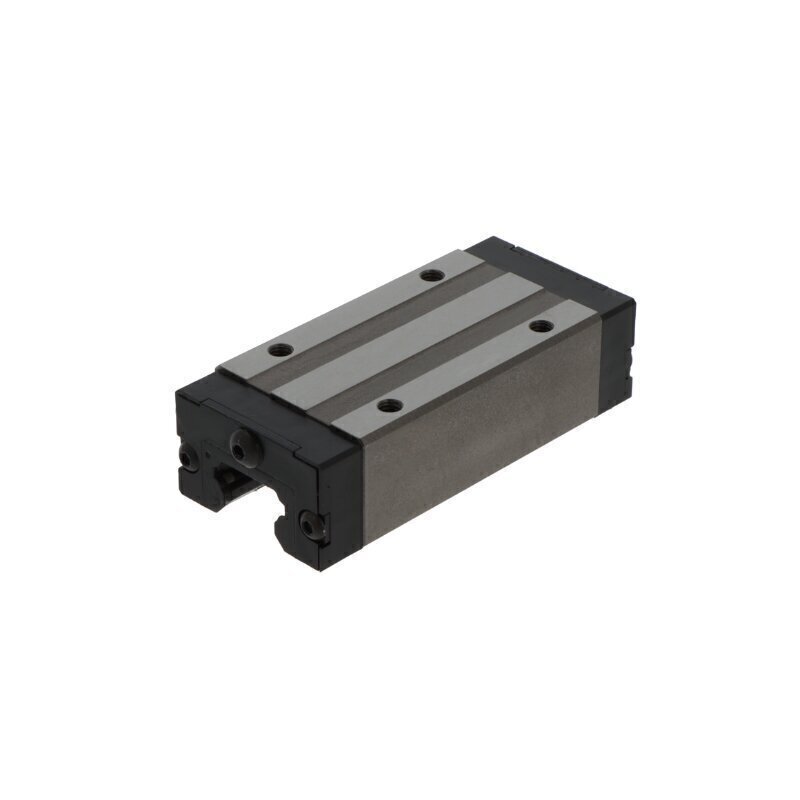

LLTHC30 LU T1 P3 Ewellix Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Ewellix
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
30 series
Temperature range
-20 to +80 °C
Tolerance class
P3
Type of rolling elements
Balls
Version
Long design
Reference
LLTHC30LUT1P3
Additional Reference:
10130236
Quick Order Code
BB-518403
Product Description
The LLTHC30 LU T1 P3 Ewellix Carriage is a precision-engineered linear motion component designed for demanding industrial applications requiring smooth, accurate movement along linear guide rails. This 30 series block carriage combines exceptional engineering with robust construction to deliver reliable performance in automation, machinery, robotics, and precision positioning systems.
Key Features:
- Design & Construction: Block carriage design constructed from durable steel and plastic materials for long-lasting performance
- Precision Performance: Four-row ball rolling elements with P3 tolerance class ensuring exceptional precision and superior load distribution
- Long Design Version: Extended design for applications requiring greater travel distances and enhanced stability
- Preload Option: Light preload configuration optimizing performance and reducing play for precision applications
- Comprehensive Sealing System: End seals, sealing strips, and inner seals provide protection against contamination and enhance service life
- Relubrication Capability: Can be relubricated via lubrication nipple for extended maintenance intervals and optimal operational efficiency
- Temperature Range: Operates reliably between -20 to +80°C, suitable for diverse environmental conditions
- Without Ball Chain: Streamlined design for applications where ball chain retention is not required
Ideal Applications:
This carriage is perfectly suited for precision positioning systems, automated machinery, robotics platforms, and industrial equipment where smooth, accurate linear motion is critical to performance.
