Quick Code: BB-517658

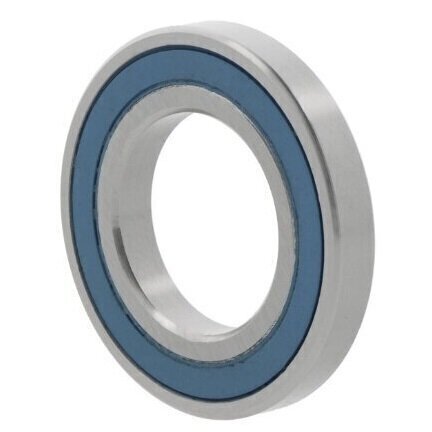

SMR148-2RS ZEN Stainless Sealed Deep Groove Ball Bearing 8mm x 14mm x 4mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Dunlop Taper Roller Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
8mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
14mm
Sealing
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
4mm
Reference
SMR148-2RS
Additional Reference:
10128334
Quick Order Code
BB-517658
Product Description
The SMR148-2RS ZEN Stainless Sealed Deep Groove Ball Bearing is a precision miniature component designed for high-performance applications requiring exceptional durability and corrosion resistance in compact environments.
Key Technical Specifications:
- Dimensions: 8mm x 14mm x 4mm
- Inside Diameter: 8mm
- Outside Diameter: 14mm
- Width: 4mm
- Material: Stainless steel (rings and rolling elements)
- Bore Type: Cylindrical bore
- Cage: Sheet steel cage
- Sealing: Sealed (2RS) configuration
- Clearance: Normal radial clearance
- Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Current Insulation: No current insulation
- Outer Ring: Without flange/groove
Typical Applications:
- Precision medical devices
- Miniature electronic equipment
- Robotics and compact machinery
- Dental and surgical instruments
- Aerospace and miniature sensor applications
- High-precision instrumentation
The SMR148-2RS ZEN bearing offers superior protection against contamination with its sealed stainless steel design, ensuring reliable performance in challenging environments. Its compact size, corrosion resistance, and precise engineering make it an excellent choice for applications requiring smooth, reliable rotational movement in tight, potentially aggressive spaces.
Recommended Usage: Ensure proper installation and periodic inspection to maximize bearing performance and longevity in your specific application.
