Quick Code: BB-517566

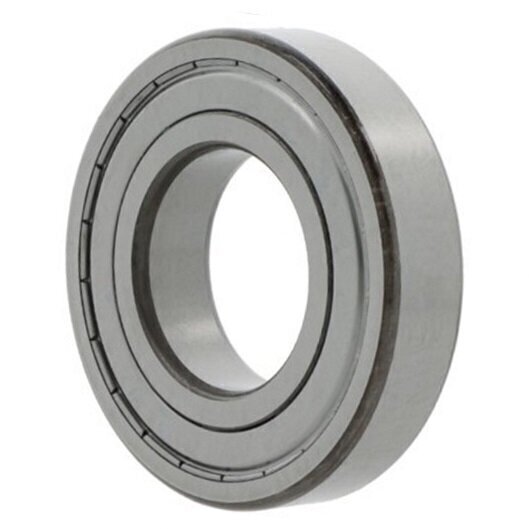

S697-2Z ZEN Stainless Shielded Deep Groove Ball Bearing 7mm x 17mm x 5mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Dunlop Taper Roller Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
7mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
17mm
Sealing
Shielded
Temperature range
-30 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
5mm
Reference
S697-2Z
Additional Reference:
10128157
Quick Order Code
BB-517566
Product Description
The S697-2Z ZEN Stainless Shielded Deep Groove Ball Bearing is a precision-engineered, compact bearing designed for applications requiring reliable, low-friction rotational performance in small-scale mechanical systems. Manufactured by ZEN with high-quality stainless steel, this bearing offers exceptional durability and protection in a compact 7mm x 17mm x 5mm form factor.
Key Features:
- Precision stainless steel construction for superior corrosion resistance
- Single row deep groove design for versatile performance
- Shielded (2Z) configuration for enhanced protection against contaminants
- Sheet steel cage for stable ball retention
- Cylindrical bore for easy mounting
- Normal radial clearance for smooth operation
Technical Specifications:
- Inside Diameter: 7mm
- Outside Diameter: 17mm
- Width: 5mm
- Material: Stainless steel
- Temperature Range: -30°C to +150°C
- Tolerance Class: P0/PN2 / ABEC 1
- Sealing: Shielded
- No current insulation
Typical Applications:
- Marine and saltwater environment equipment
- Food processing machinery
- Medical devices
- Precision scientific instruments
- Small electric motors
- Robotics
- Hobby and DIY projects
- Miniature mechanical systems requiring corrosion resistance
The S697-2Z offers exceptional performance with its stainless steel construction and shielded design, providing reliable protection against dust and light contamination while ensuring smooth, consistent rotation. Its compact size and corrosion-resistant properties make it an ideal choice for applications demanding precision and durability in challenging environments.
