Quick Code: BB-517542

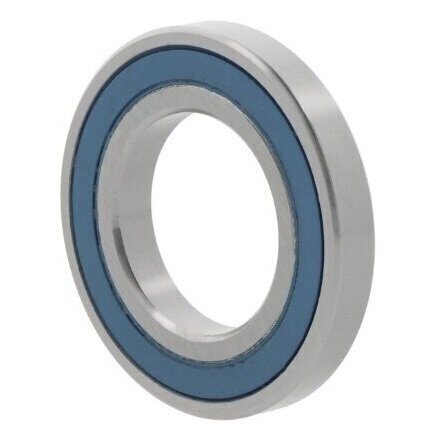

S6314-2RS ZEN Stainless Sealed Deep Groove Ball Bearing 70mm x 150mm x 35mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
70mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
150mm
Sealing
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
35mm
Reference
S6314-2RS
Additional Reference:
10128105
Quick Order Code
BB-517542
Product Description
The S6314-2RS ZEN Stainless Sealed Deep Groove Ball Bearing is a high-performance, corrosion-resistant bearing designed for demanding industrial and specialized applications. Constructed entirely from stainless steel, this bearing offers exceptional durability and performance in challenging environments.
Key Features:
- Single row deep groove ball bearing design
- Fully sealed configuration for enhanced protection
- Stainless steel construction for superior corrosion resistance
- Cylindrical bore for versatile mounting options
- Dimensions: 70mm x 150mm x 35mm
- Operating temperature range: -20°C to +120°C
- Tolerance class: P0/PN2 / ABEC 1
Technical Specifications:
- Inside Diameter: 70mm
- Outside Diameter: 150mm
- Width: 35mm
- Cage Material: Sheet steel
- Radial Clearance: Normal
- Current Insulation: None
- Sealing: Sealed (2RS)
- Rolling Element Material: Stainless steel
Typical Applications:
- Marine and coastal equipment
- Food processing machinery
- Chemical processing plants
- Pharmaceutical manufacturing
- Medical equipment
- Outdoor and wet environment machinery
The S6314-2RS ZEN Stainless Sealed Deep Groove Ball Bearing provides exceptional protection against contaminants and moisture, making it ideal for applications requiring high corrosion resistance and reliable performance. Its sealed design minimizes maintenance and extends bearing life in challenging operational conditions.
