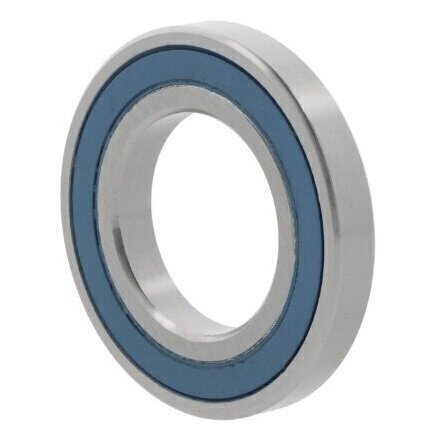

S63002-2RS ZEN Stainless Sealed Deep Groove Ball Bearing 15mm x 32mm x 13mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Dunlop Taper Roller Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
15mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
32mm
Sealing
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
13mm
Reference
S63002-2RS
Additional Reference:
10128080
Quick Order Code
BB-517531
Product Description
The S63002-2RS ZEN Stainless Sealed Deep Groove Ball Bearing is a premium, corrosion-resistant solution designed for precision applications requiring exceptional durability and performance in challenging environments.
Key Features:
- Compact and versatile single-row bearing design
- Constructed entirely from high-grade stainless steel
- Sealed configuration for superior protection against contaminants
- Precise dimensions: 15mm inside diameter, 32mm outside diameter, 13mm width
- Operates effectively in temperature range of -20°C to +120°C
Technical Specifications:
- Bore Type: Cylindrical bore
- Cage Material: Sheet steel
- Radial Clearance: Normal
- Tolerance Class: P0/PN2 / ABEC 1
- Current Insulation: None
- Outer Ring: Without flange/groove
Typical Applications:
- Food processing equipment
- Marine and coastal environments
- Chemical processing machinery
- Medical and pharmaceutical equipment
- Corrosion-resistant industrial machinery
- Humid or chemically aggressive environments
Ideal for engineers and technicians seeking a robust, corrosion-resistant bearing with reliable performance and extended operational life. The stainless steel construction provides excellent resistance to rust, making it perfect for applications where traditional steel bearings would quickly degrade.
