Quick Code: BB-517494

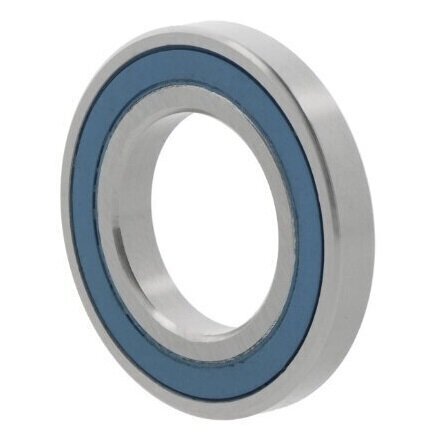

S6204-2RS ZEN Stainless Sealed Deep Groove Ball Bearing 20mm x 47mm x 14mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
20mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
47mm
Sealing
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
14mm
Reference
S6204-2RS
Additional Reference:
10128016
Quick Order Code
BB-517494
Product Description
The S6204-2RS ZEN Stainless Sealed Deep Groove Ball Bearing is a high-performance precision bearing designed for reliable operation across various industrial and mechanical applications. Constructed entirely from high-quality stainless steel, this bearing offers exceptional durability and corrosion resistance in challenging environments.
Key Features:
- Single row deep groove design
- Stainless steel construction for superior durability
- Sealed configuration for enhanced protection
- Precise dimensions: 20mm x 47mm x 14mm
- Sheet steel cage for stability
- Normal radial clearance
- Operating temperature range: -20°C to +120°C
- Tolerance class P0/PN2 / ABEC 1
Technical Specifications:
- Bore: 20mm cylindrical bore
- Outer Diameter: 47mm
- Width: 14mm
- Sealing: Fully sealed
- No current insulation
Typical Applications:
- Food processing equipment
- Marine and coastal environments
- Chemical processing machinery
- Medical and pharmaceutical equipment
- Corrosion-resistant industrial machinery
The ZEN S6204-2RS bearing's stainless steel construction and sealed design make it ideal for applications requiring resistance to moisture, chemicals, and contamination. Its precision engineering ensures smooth operation and extended service life in demanding conditions.
