Quick Code: BB-523478

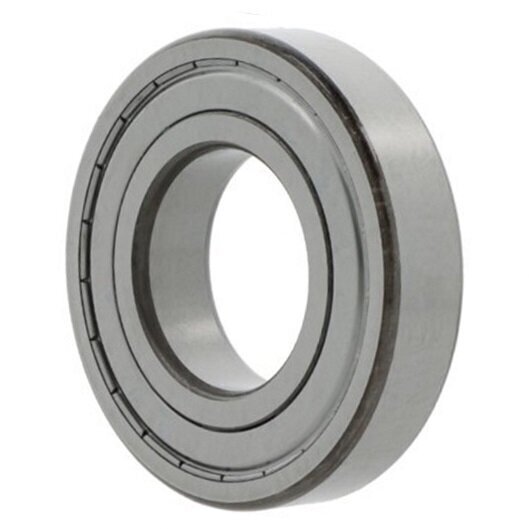

S6203-2Z-C3 ZEN Stainless Shielded Deep Groove Ball Bearing 17mm x 40mm x 12mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Dunlop Taper Roller Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Inside Dia
17mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
40mm
Sealing
Shielded
Temperature range
-30 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
12mm
Reference
S6203-2Z-C3
Additional Reference:
10145613
Quick Order Code
BB-523478
Product Description
The S6203-2Z-C3 ZEN Stainless Shielded Deep Groove Ball Bearing is a high-performance precision bearing designed for demanding applications requiring exceptional corrosion resistance and durability. Manufactured by ZEN using premium stainless steel, this bearing offers superior protection and reliable performance in challenging environments.
Key Features:
- Single-row deep groove ball bearing design
- Shielded (2Z) configuration for enhanced protection
- Compact stainless steel construction
- Cylindrical bore for versatile mounting
- Sheet steel cage for structural integrity
- Slightly increased radial clearance for optimal performance
Technical Specifications:
- Dimensions:
- Inside Diameter: 17mm
- Outside Diameter: 40mm
- Width: 12mm
- Construction Details:
- Material: Stainless steel
- Rolling Elements: Stainless steel
- Cage: Sheet steel
- Sealing: Shielded (2Z type)
- Outer Ring: Without flange/groove
- Performance Characteristics:
- Tolerance Class: P0/PN2 / ABEC 1
- Operating Temperature Range: -30°C to +150°C
- No current insulation
Typical Applications:
- Marine and coastal equipment
- Food processing machinery
- Medical and pharmaceutical equipment
- Chemical processing plants
- Automotive components in corrosive environments
- Precision instruments requiring corrosion resistance
The S6203-2Z-C3 stainless steel bearing provides excellent protection against moisture, chemicals, and contamination. Its shielded design prevents debris entry while maintaining effective lubrication, ensuring long-lasting performance and reliability in applications where standard bearings would quickly degrade.
