Quick Code: BB-525222

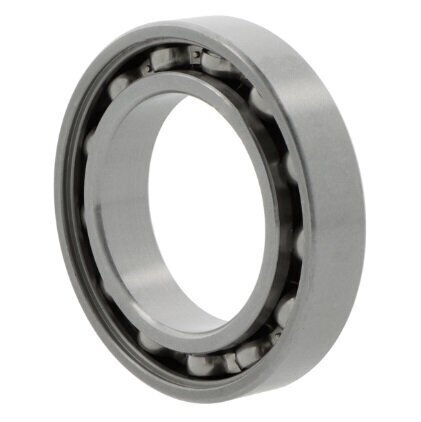

S6005-Z-C3 ZEN Stainless Deep Groove Ball Bearing with Shield on One Side Only 25mm x 47mm x 12mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Dunlop Taper Roller Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Inside Dia
25mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
47mm
Sealing
Shielded on One Side Only
Temperature range
-30 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
12mm
Reference
S6005-Z-C3
Additional Reference:
10151876
Quick Order Code
BB-525222
Product Description
The S6005-Z-C3 ZEN Stainless Deep Groove Ball Bearing is a high-performance precision component designed for robust and reliable applications requiring exceptional durability and corrosion resistance. Manufactured by ZEN, this single-row ball bearing offers superior performance in challenging industrial environments.
Key Features:
- Stainless steel construction for superior corrosion resistance
- Single row deep groove configuration
- Shielded on one side for enhanced protection
- Sheet steel cage for structural integrity
- Slightly increased radial clearance for optimal performance
Technical Specifications:
- Inside Diameter: 25mm
- Outside Diameter: 47mm
- Width: 12mm
- Material: Stainless steel (rolling elements and races)
- Cage Material: Sheet steel
- Sealing: Shielded on one side
- Temperature Range: -30°C to +150°C
- Tolerance Class: P0/PN2 / ABEC 1
- Clearance: Slightly increased radial clearance
- Current Insulation: No
Typical Applications:
- Marine and coastal equipment
- Food processing machinery
- Chemical processing equipment
- Pharmaceutical manufacturing
- Automotive components
- Industrial machinery exposed to moisture or corrosive environments
The unique one-sided shielding provides additional protection against contaminants while allowing for easier maintenance and lubrication. Its stainless steel construction ensures exceptional durability and performance in environments requiring high corrosion resistance and reliability.
