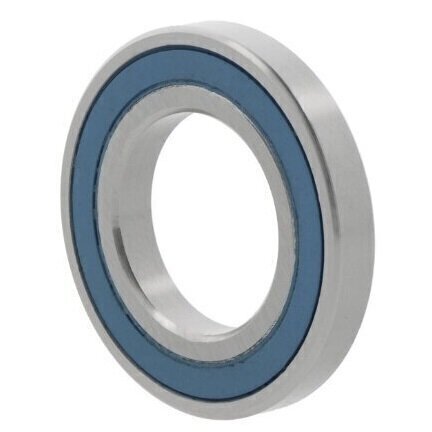

S16004-2RS ZEN Stainless Sealed Deep Groove Ball Bearing 20mm x 42mm x 8mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Dunlop Taper Roller Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
20mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
42mm
Sealing
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
8mm
Reference
S16004-2RS
Additional Reference:
10127755
Quick Order Code
BB-517351
Product Description
The S16004-2RS ZEN Stainless Sealed Deep Groove Ball Bearing is a high-performance, versatile bearing designed for precision applications requiring durability and reliable performance. Constructed entirely from premium stainless steel, this bearing offers exceptional corrosion resistance and reliability across various industrial and mechanical environments.
Key Features:
- Single row deep groove ball bearing design
- Sealed configuration for enhanced protection against contaminants
- Compact dimensions: 20mm inside diameter, 42mm outside diameter, 8mm width
- Stainless steel construction for superior corrosion resistance
- Sheet steel cage for structural integrity
- Normal radial clearance for smooth operation
Technical Specifications:
- Material: Stainless steel (both inner rings and rolling elements)
- Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Bore Type: Cylindrical
- Current Insulation: None
- Outer Ring: Without flange/groove
Ideal Applications:
- Food processing equipment
- Marine and coastal machinery
- Chemical processing plants
- Medical and pharmaceutical machinery
- High-humidity or corrosive environments
- Clean room and sterile manufacturing settings
The sealed design prevents dirt, moisture, and contaminants from entering the bearing, while the stainless steel construction ensures long-lasting performance in challenging conditions. Its versatile characteristics make it an excellent choice for applications requiring reliable, low-maintenance rotational components.
