Quick Code: BB-516885

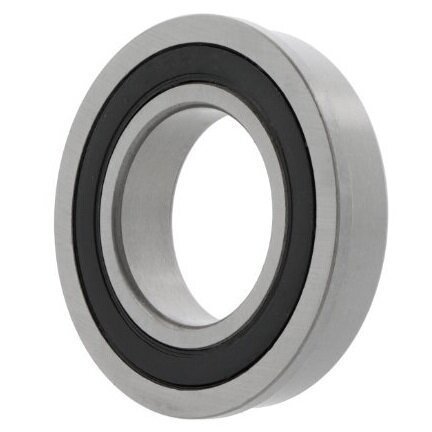

F61701-2RS ZEN Sealed Deep Groove Ball Bearing 12mm x 18mm x 4mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
12mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Flange on outer ring
Outside Dia
18mm
Sealing
Sealed
Temperature range
-30 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
4mm
Reference
F61701-2RS
Additional Reference:
10126722
Quick Order Code
BB-516885
Product Description
The F61701-2RS ZEN Sealed Deep Groove Ball Bearing is a precision miniature bearing designed for compact applications requiring reliable and smooth rotational performance. With its compact 12mm x 18mm x 4mm dimensions, this bearing offers exceptional versatility for engineering and technical applications.
Key Technical Specifications:
- Dimensions: 12mm x 18mm x 4mm
- Inside Diameter: 12mm
- Outside Diameter: 18mm
- Width: 4mm
- Bore Type: Cylindrical bore
- Material: Standard bearing steel
- Rolling Elements Material: Standard bearing steel
- Cage: Sheet steel cage
- Sealing: Sealed design
- Clearance: Normal radial clearance
- Temperature Range: -30°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Current Insulation: No current insulation
- Outer Ring: Flange on outer ring
Typical Applications:
- Precision electronic devices
- Small motors and actuators
- Robotics and compact machinery
- Medical equipment
- Hobby and model engineering projects
The F61701-2RS ZEN bearing provides superior protection against contamination with its sealed design, ensuring reliable performance in challenging environments. Its compact size and robust construction make it an excellent choice for applications requiring precise and smooth rotational movement in tight spaces.
