Quick Code: BB-516883

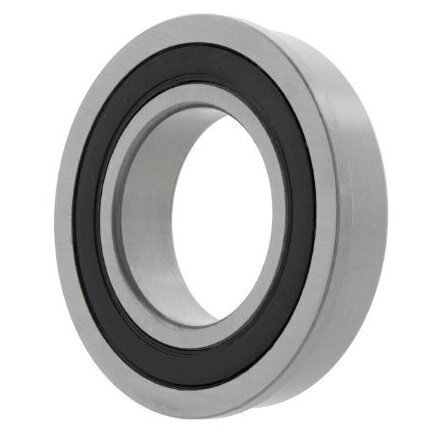

F61700-2RS ZEN Sealed Deep Groove Ball Bearing 10mm x 15mm x 4mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
10mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Flange on outer ring
Outside Dia
15mm
Sealing
Sealed
Temperature range
-30 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
4mm
Reference
F61700-2RS
Additional Reference:
10126720
Quick Order Code
BB-516883
Product Description
The F61700-2RS ZEN Sealed Deep Groove Ball Bearing is a precision-engineered, compact single-row ball bearing designed for a wide range of precision mechanical applications that require reliable, compact performance.
Key Features:
- Single-row deep groove ball bearing configuration
- Sealed design for enhanced protection against dust, dirt, and moisture
- Cylindrical bore for versatile mounting options
- Constructed with standard bearing steel for durability
- Sheet steel cage for consistent performance
Technical Specifications:
- Inside Diameter: 10mm
- Outside Diameter: 15mm
- Width: 4mm
- Temperature Range: -30°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Radial Clearance: Normal
- Sealing: Sealed (2RS)
- Cage Material: Sheet steel
- Material: Standard bearing steel
- Current Insulation: No
- Outer Ring: Flange on outer ring
Typical Applications:
- Precision small machinery
- Compact electrical equipment
- Small motors and pumps
- Robotics and automation components
- Medical devices
- Office and consumer electronics
The ZEN F61700-2RS bearing offers exceptional performance in compact applications, providing reliable rotation and protection against external contaminants. Its sealed design and robust construction ensure long-lasting, smooth operation in various environments.
Reference Number: F61700-2RS
