Quick Code: BB-495471

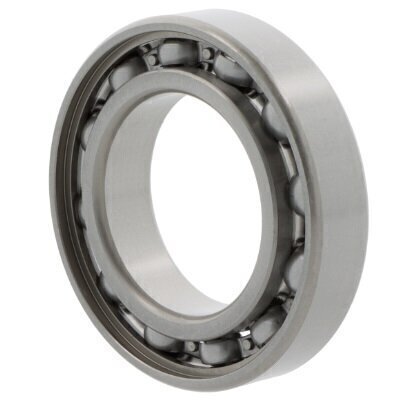

6409-C3 ZEN Open Deep Groove Ball Bearing 45mm x 120mm x 29mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Inside Dia
45mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
120mm
Seal Type
None, open bearing
Sealing
Open
Temperature range
-30 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
29mm
Reference
6409-C3
Additional Reference:
10147091
Quick Order Code
BB-495471
Product Description
The 6409-C3 ZEN Open Deep Groove Ball Bearing is a high-performance single-row bearing designed for versatile industrial and mechanical applications. Manufactured by ZEN using premium standard bearing steel, this precision-engineered bearing offers reliable performance across a wide range of operating conditions.
Key Technical Specifications:
- Dimensions:
- Inside Diameter: 45mm
- Outside Diameter: 120mm
- Width: 29mm
- Construction Details:
- Single-row bearing configuration
- Cylindrical bore
- Sheet steel cage
- Open design (no seals)
- Performance Characteristics:
- Slightly increased radial clearance (C3 classification)
- Tolerance class: P0/PN2 / ABEC 1
- Operating temperature range: -30°C to +150°C
Typical Applications:
- Electric motors
- Automotive components
- Industrial machinery
- Conveyor systems
- Agricultural equipment
The open design allows for easy maintenance and is suitable for applications with clean, controlled environments. Its standard bearing steel construction ensures durability and consistent performance under moderate load and speed conditions.
