Quick Code: BB-516816

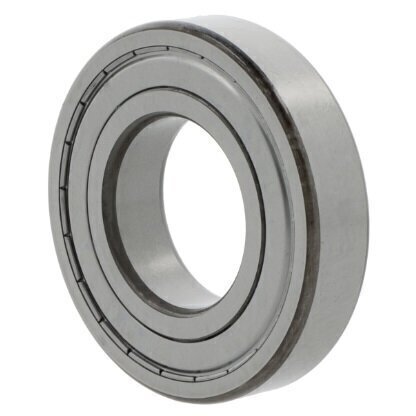

63804-2Z ZEN Shielded Deep Groove Ball Bearing 20mm x 32mm x 10mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
20mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
32mm
Sealing
Shielded
Temperature range
-30 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
10mm
Reference
63804-2Z
Additional Reference:
10126552
Quick Order Code
BB-516816
Product Description
The 63804-2Z ZEN Shielded Deep Groove Ball Bearing is a precision-engineered solution designed for reliable performance across various industrial and mechanical applications. Featuring a robust single-row design and constructed from standard bearing steel, this bearing offers exceptional durability and versatility.
Key Technical Specifications:
- Dimensions: 20mm x 32mm x 10mm
- Inside Diameter: 20mm
- Outside Diameter: 32mm
- Width: 10mm
- Bore Type: Cylindrical
- Cage Material: Sheet steel
- Sealing: Shielded (2Z)
- Temperature Range: -30°C to +150°C
- Tolerance Class: P0/PN2 / ABEC 1
- Rolling Element Material: Standard bearing steel
- Clearance: Normal radial clearance
Product Characteristics:
- Shielded design provides protection against dust and contaminants
- Minimal maintenance requirements
- Suitable for moderate load and speed applications
- No current insulation
Ideal Applications:
- Electric motors
- Automotive components
- Precision machinery
- Small mechanical assemblies
- Industrial equipment
- Robotics and automation systems
The ZEN 63804-2Z bearing offers reliable performance with its standard bearing steel construction and shielded design, making it an excellent choice for engineers and technicians seeking a dependable, low-maintenance solution for various mechanical applications.
