Quick Code: BB-499424

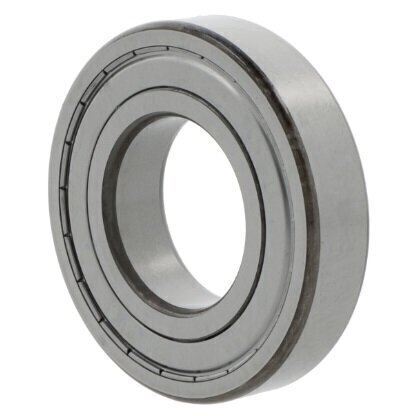

6304-2Z-C3 ZEN Shielded Deep Groove Ball Bearing 20mm x 52mm x 15mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Dunlop Taper Roller Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Inside Dia
20mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
52mm
Seal Type
Cover on both sides
Sealing
Shielded
Temperature range
-30 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
15mm
Reference
6304-2Z-C3
Additional Reference:
10145875
Quick Order Code
BB-499424
Product Description
The 6304-2Z-C3 ZEN Shielded Deep Groove Ball Bearing is a high-performance precision bearing designed for versatile industrial and mechanical applications. This single-row ball bearing offers reliable performance with slightly increased radial clearance, making it suitable for a wide range of operational environments.
Key Features:
- Single row deep groove configuration
- Cylindrical bore design
- Shielded with covers on both sides for enhanced protection
- Dimensions: 20mm x 52mm x 15mm
- Sheet steel cage construction
- Temperature range: -30°C to +150°C
Technical Specifications:
- Inside Diameter: 20mm
- Outside Diameter: 52mm
- Width: 15mm
- Material: Standard bearing steel
- Tolerance Class: P0/PN2 / ABEC 1
- Sealing Type: Shielded (2Z)
- Clearance: Slightly increased radial clearance
Typical Applications:
- Electric motors
- Automotive components
- Industrial machinery
- Pumps and compressors
- Conveyor systems
- Light to medium-duty mechanical equipment
The ZEN 6304-2Z-C3 ball bearing provides excellent protection against contaminants while ensuring smooth and consistent rotational performance. Its robust construction and versatile design make it an ideal choice for applications requiring reliable, low-maintenance bearings.
