Sealey VS8813 OBD Breakout Box 16-Pin 12V/24V
Also Try
Battery & Alternator Diagnostics
Probes & Circuit Testers
Battery & Alternator Tools
Wiring Tools
Multimeters
Buy Now
Product Specification
Brand
Sealey
Cable Length
700mm
Input Voltage DC
9-32V
Maximum Load
2.0A
Model No
VS8813
Nett Weight
0.24kg
Operating Temperature
0℃-50℃
Overload Protection
Yes
Resolution
: 0.1V
Reverse Polarity Protection
Yes
Reference
VS8813
Quick Order Code
BB-657556
Product Description

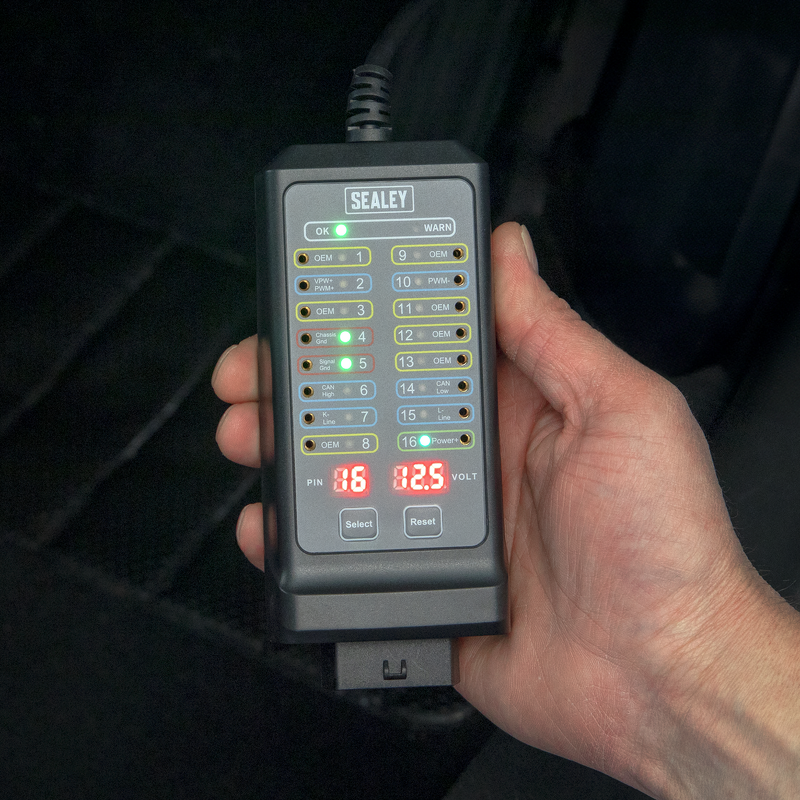

TESTS THE ON-BOARD DIAGNOSTOC PORT - For any faults before connecting other diagnostic devices to the DLC.UNIQUE DESIGN The breakout box can be connected in series with 16-pin OBDII/EOBDII diagnostic equipment.
CONNECTS TO MULTIMETERS AND OSCILLOSCOPES To enable further testing.
COMPATIBLE - With 12 and 24V systems.
SELECTABLE PIN VOLTAGE INDICATOR - Shows the real-time voltage of the selected pin.
COMMUNICCATION PROTOCOL INDICATOR - Pin 6 CAN H, Pin 14 CAN L, Pin 2 VPW, PWM, Pin 10 PWM-, Pin 7 K_LINE and Pin 15 L_LINE.
OVERLOAD PROTECTION - Protects any connected diagnostic equipment from damage.
