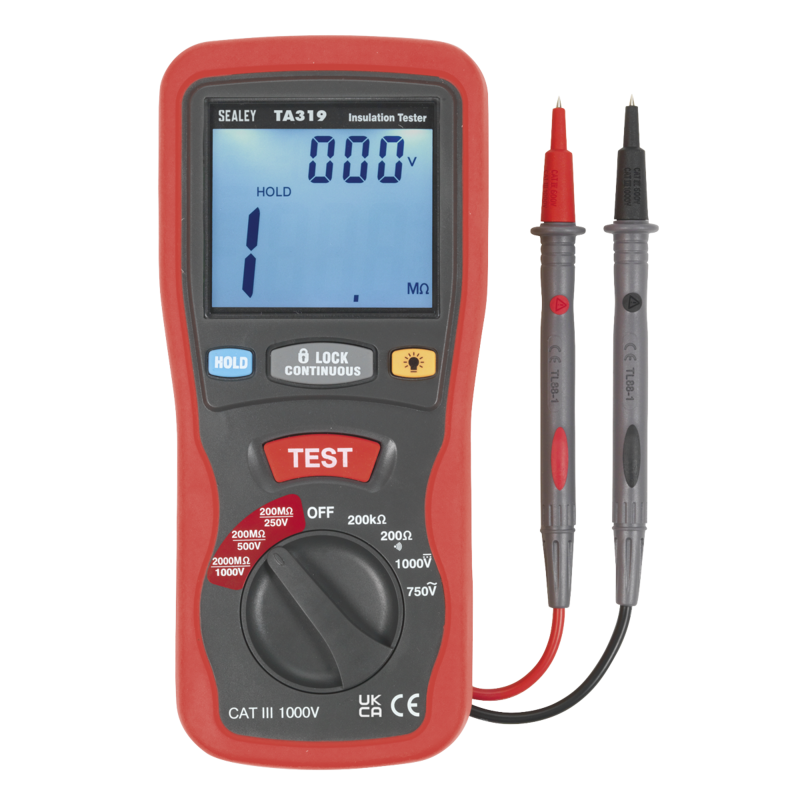

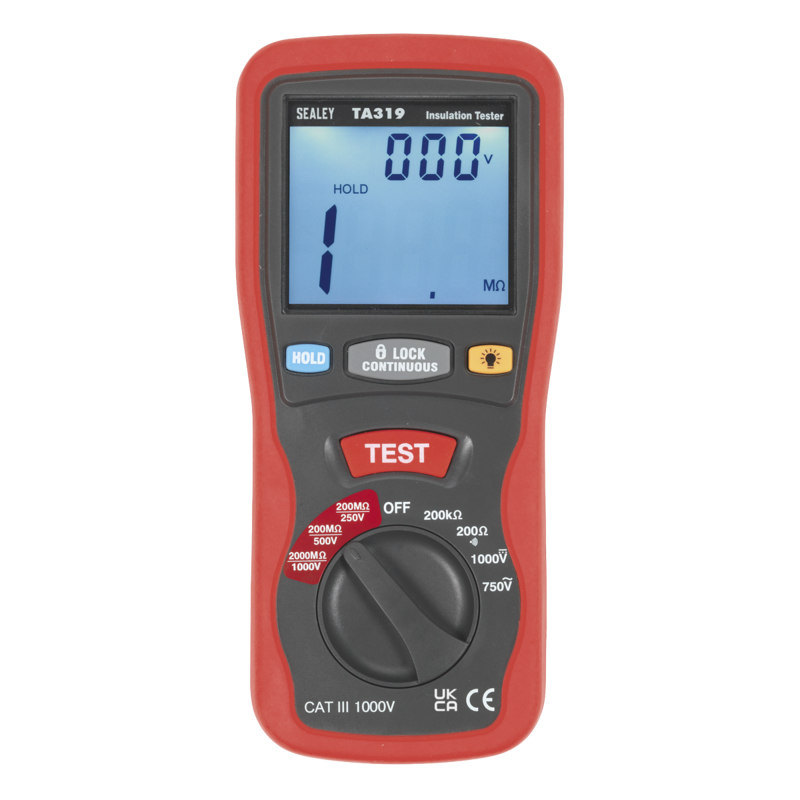

Sealey TA319 Digital Insulation Tester
Also Try
Probes & Circuit Testers
Battery & Alternator Diagnostics
Wiring Tools
Multimeters
Battery & Alternator Tools
Buy Now
Qty:
Product Specification
Batteries
6 x 1.5V (supplied)
Brand
Sealey
Continuity Test
Active Sound Level; ≤40Ω, Test Current; ≤200mA
Insulation Resistance
Range; 200MΩ, 2000MΩ, Max Resolution; 100kΩ-1MΩ, Accuracy; (±3.5% ± 5-digits)
Model No
TA319
Nett Weight
1.29kg
Operating Temperature
0ºC to +40ºC, (<80%R.H)
Resistance
Range; 200Ω, 2000Ω, Max Resolution; 0.1Ω, 1Ω, Accuracy; (±1% ± 2-digits)
Storage Temperature
-10ºC to +60ºC, (<70%R.H)
Test Voltage
250V/200MΩ, 500V/200MΩ, 1000V/2000MΩ
Voltage AC
Range; 750V, Max Resolution; 1V, Accuracy; (±1.2% ± 10-digits)
Voltage DC
Range; 1000V, Max Resolution; 1V, Accuracy; (±0.8% ± 3-digits)
Reference
TA319
Quick Order Code
BB-452023
Product Description
Specially designed for testing insulation on high voltage cables.Suitable for hybrid and electric vehicles.

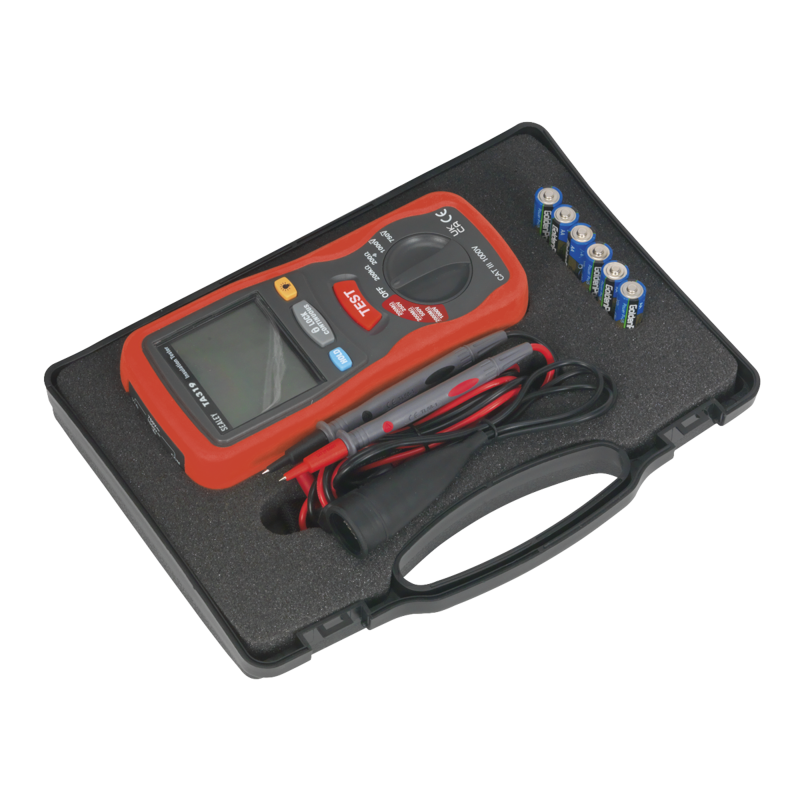

Supplied with test leads, batteries and storage case.
Conforms to EN61010 CAT III (1000V).
