Bearings
Cylindrical Roller Thrust
Quick Code: BB-519520

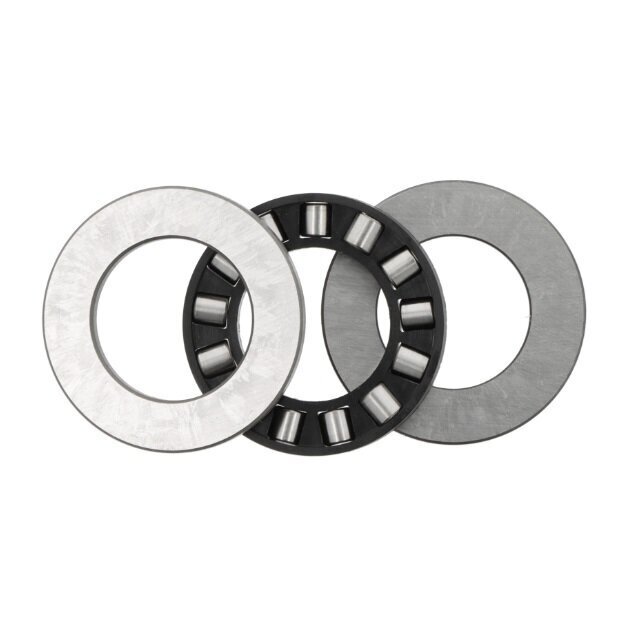

81104-TN ZEN Axial Cylindrical Roller Thrust Bearing 20x35x10mm
Help Articles
Also Try
XL Timing Belts (1/5inch)
XL Section Timing Pulleys (5.08mm)
Ball Bearings
Housed & Flanged Bearings
Oilite Bearing Bushes
Single Direction
Threadlocking
Buy Now
Qty:
Product Specification
Angular adjustment
Non-angle adjustable
Brand
ZEN
Cage
Polyamide cage
Inside Dia
20mm
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia
35mm
Product range
Complete axial cylindrical roller bearing
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
10mm
Reference
81104 -TN
Additional Reference:
10134121
Quick Order Code
BB-519520
Product Description
Cylindrical roller thrust bearings are best suited for arrangements that involve the support of heavy axial loads. In addition, they are relatively insensitive to shock loads, are very stiff - requiring little axial space. As standard they are available as single direction bearings and can only accommodate axial loads acting in one direction.The cylindrical surface of the rollers is slightly relieved towards the ends, which virtually eliminates damaging edge stresses. These bearings are of separable design which enables the ease of mounting and assembly of the individual components.
