Quick Code: BB-556144

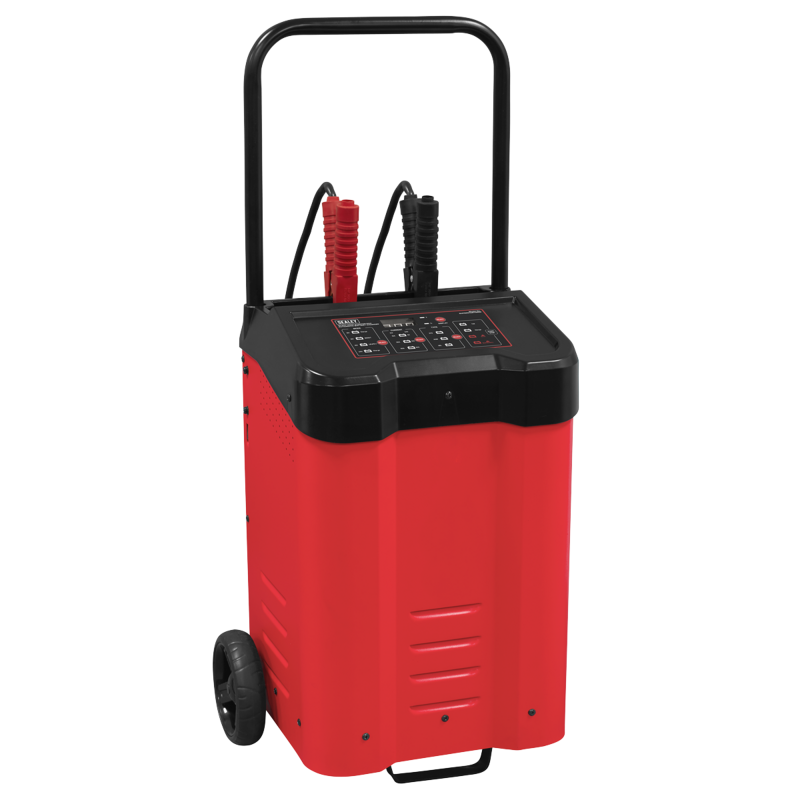

Sealey SUPERSTART200D 12/24V Automatic Battery Charger 60A 200A Starter
Also Try
Starters & Chargers
Consumables
Miscellaneous
Solar Chargers
Electric
Power Packs
Wine & Drinks Fridges
Buy Now
Qty:
Product Specification
Battery Range
10Ah - 600Ah
Battery Support/DC Supply Mode
No
Battery Type
GEL, AGM, STD, LITHIUM (12V ONLY), LEISURE
Brand
Sealey
Cable & Clamp Length
2m
Charger Type Traditional (T) or Intelligent (HF)
HF
Housing Protection
IP20
Max Charging Volts 12V (24V) Lead Acid Batteries
AGM, 14.7V (29.4V), GEL, 14.1V (28.2V), STD, 14.4V (28.8V)
Max Charging Volts 12V LifeP04
14.5V
Max. Size Battery (AH) Full Charge in 12hrs from Discharged
600Ah
Model No
SUPERSTART200D
Nett Weight
16kg
Output
12/24V
Output Charge Peak
60A 12V, 30A 24V
Output Charge Rates
12V - 60A, 30A, 10A
24V - 30A, 15A, 5A
12V 10A LiFePo4
Plug Type
3-Pin
Power Supply Cable Length
1.9m
Start Peak
200A (12V only) (5s on, 180 off)
Supply Current
13A
Supply Voltage
230V ~ 50Hz 13A (Max)
Working Temp
(-10°C - 40°C)
Zero Voltage Charging
No
Reference
SUPERSTART200D
Quick Order Code
BB-556144
Product Description
AUTOMATIC BATTERY CHARGER AND STARTER - Designed for charging, and boosting a variety of AGM (stop/start), GEL, lead acid and Lithium batteries up to 600Ah.INTUITIVE - Digital display and 200A peak engine start function, makes this unit ideal for every workshop.

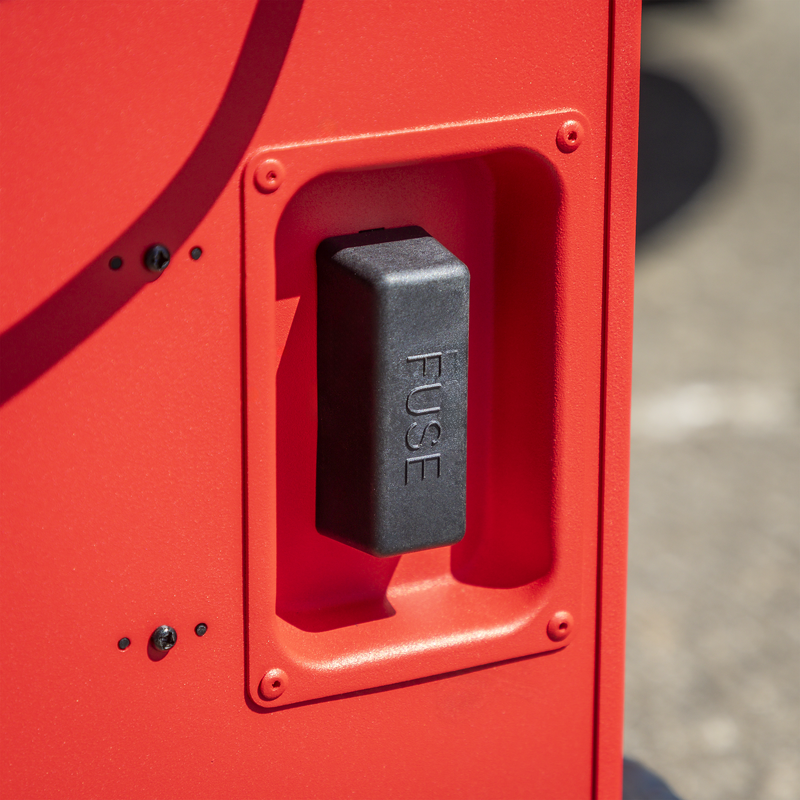

SAFETY FEATURES - Overcharge, short circuit, and reverse polarity protection.
DEDICATED CHARGING PROGRAMMES - Suitable for AGM, GEL, conventional Lead Acid and lithium batteries with fully automated charging algorithms.
MULTIPLE CHARGING PROGRAMMES Three charging rates for both 12V and 24V systems.
PORTABLE DESIGN Portable design with handle means you can easily manoeuvre the unit around the workshop.
