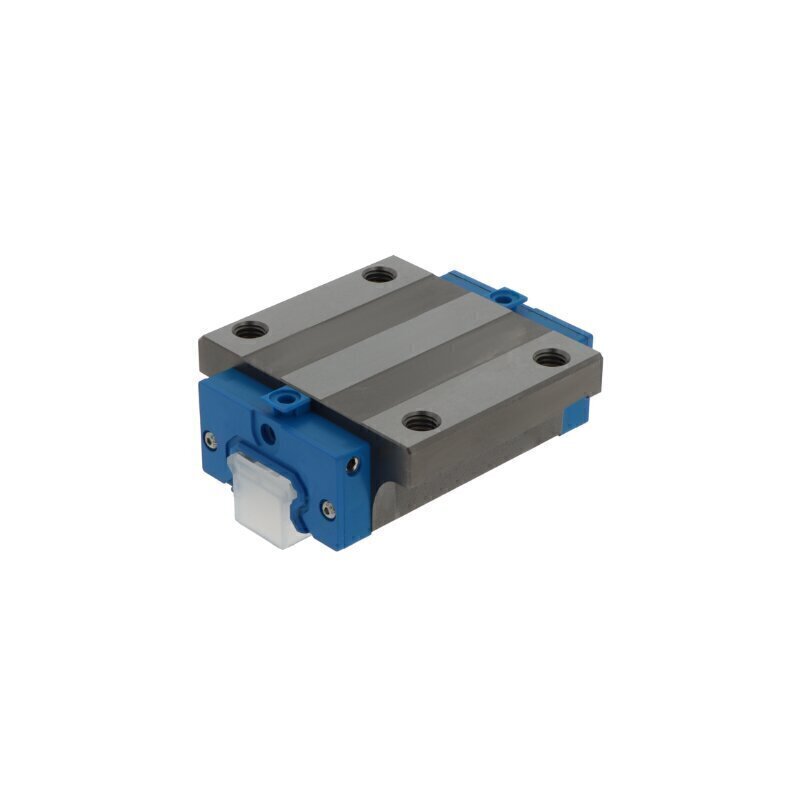

R200231314 KWD-035-FLS-C1-H-0 (NRFG) Bosch Rexroth Carriage
R200231314 KWD-035-FLS-C1-H-0 (NRFG) Bosch Rexroth Carriage
This precision-engineered flange carriage from Bosch Rexroth is part of the advanced 35 series linear carriage range, specifically designed for applications demanding high accuracy with extended travel capabilities. Featuring a long design configuration with light preload optimization, this carriage delivers exceptional performance in demanding industrial automation, machinery, and positioning systems while maintaining superior precision tolerances and reliable load-carrying capacity.
Key Specifications:
- Series: 35 series – engineered for high-performance linear motion applications
- Design Type: Flange carriage with long design for extended travel and flexible mounting options
- Rolling Elements: Double-row ball bearings delivering smooth, precise linear motion with balanced load distribution and minimal friction
- Preload: Light preload – optimized for smooth operation with reduced friction while maintaining adequate stiffness and precision
- Tolerance Class: H (High-Precision Class) for superior accuracy, repeatability, and tight tolerance requirements
- Material Composition: Steel and plastic construction – combines durability with lightweight characteristics for reliable long-term performance
- Sealing: End seals on both sides to provide effective protection against contaminants, dust, and debris for extended service life
- Ball Chain: Without ball chain
- Operating Temperature Range: -10 to +100°C for versatile application environments
- Lubrication: Relubrication capability via integrated lubrication nipple for convenient maintenance and extended service intervals
Ideal Applications:
This carriage is well-suited for:
- Precision automated assembly and production machinery
- Industrial positioning systems requiring high accuracy and repeatability
- Extended-stroke linear motion applications and material handling equipment
- Manufacturing machinery demanding reliable performance with tight tolerances
- CNC and precision machining equipment requiring extended travel capability
- Packaging, labeling, and automation systems requiring smooth, precise operation
- Test benches and laboratory instrumentation with demanding accuracy requirements
- Linear guidance systems requiring low-friction operation over extended distances
Reference Number: R200231314KWD035FLSC1H0
As part of the extensive Bosch Rexroth carriage portfolio, this 35 series model combines precision engineering with practical maintenance advantages, light preload optimization, and an extended travel profile. It represents an excellent choice for linear motion systems demanding both superior accuracy and operational smoothness in demanding industrial environments.
