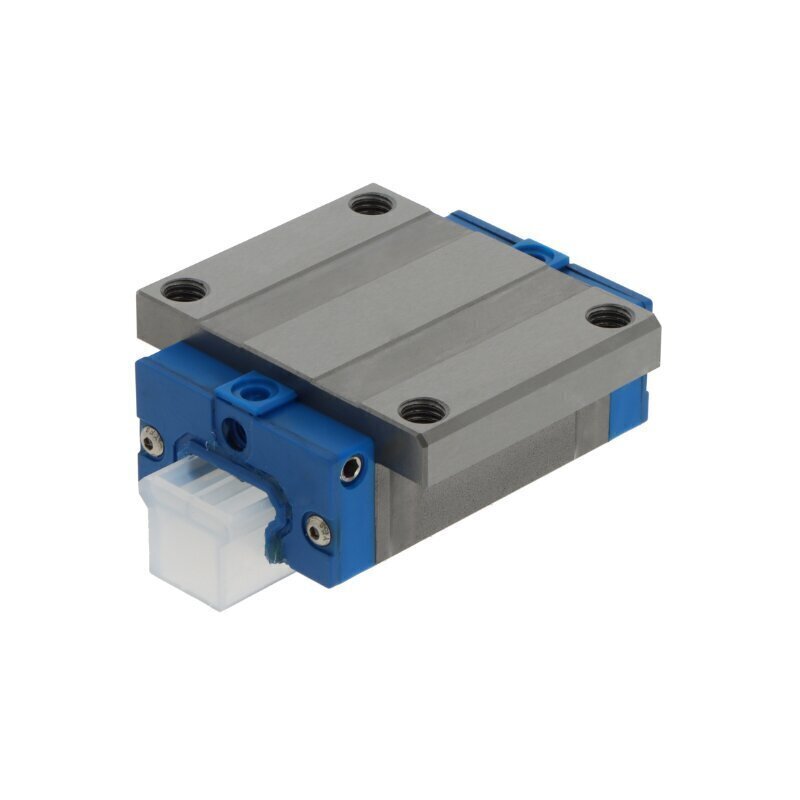

R200171330 KWD-030-FNS-C1-H-1 (NR) Bosch Rexroth Carriage
R200171330 KWD-030-FNS-C1-H-1 (NR) Bosch Rexroth Carriage
This precision linear carriage from Bosch Rexroth is engineered for mid-range industrial applications requiring reliable, accurate linear motion with enhanced positioning capabilities. Part of the 30 series range, this flange carriage combines practical functionality with high-precision performance characteristics, making it an excellent choice for automation systems and machinery operating in standard industrial environments where consistent accuracy is essential.
Key Features:
- Brand: Bosch Rexroth – trusted leader in linear motion technology
- Series: 30 series – proven design for mid-range performance and precision applications
- Design Type: Flange carriage – optimized for compact installations with direct mounting capability
- Rolling Elements: Double-row ball bearings – delivering smooth, consistent linear motion with reliable load distribution and precise motion control
- Preload: Light preload – provides enhanced stiffness and precision while maintaining smooth operation with optimized friction characteristics
- Tolerance Class: H (High-Precision Class) – ensures superior accuracy and repeatability for demanding positioning applications
- Material Composition: Steel with anti-corrosion protection and plastic components – ensures durability in diverse industrial environments while providing enhanced corrosion resistance
- Sealing: End seals on both sides – provides effective protection against contaminants and extends service life
- Lubrication: Relubrication capability via lubrication nipple – facilitates convenient maintenance and extended service intervals
- Ball Chain: Without ball chain
- Operating Temperature Range: -10 to +100°C – suitable for a wide range of industrial environments
- Version: Standard version – versatile configuration for general-purpose mid-range applications
Ideal Applications:
This carriage is well-suited for:
- Mid-range automated machinery and production systems requiring precision positioning
- Industrial automation equipment demanding consistent accuracy
- Material handling systems with positioning requirements
- Machine tool applications requiring reliable motion control
- Packaging machinery where precision and corrosion resistance are beneficial
- Transfer and indexing systems in manufacturing facilities
- Applications requiring smooth linear motion with enhanced precision and minimal maintenance requirements
- Environments where standard industrial operating conditions are present
Reference Number: R200171330KWD030FNSC1H1
As part of the extensive Bosch Rexroth carriage portfolio, this model combines precision engineering with practical construction, making it an ideal choice for linear motion systems demanding reliable performance, superior accuracy, and straightforward maintenance in diverse industrial applications.
