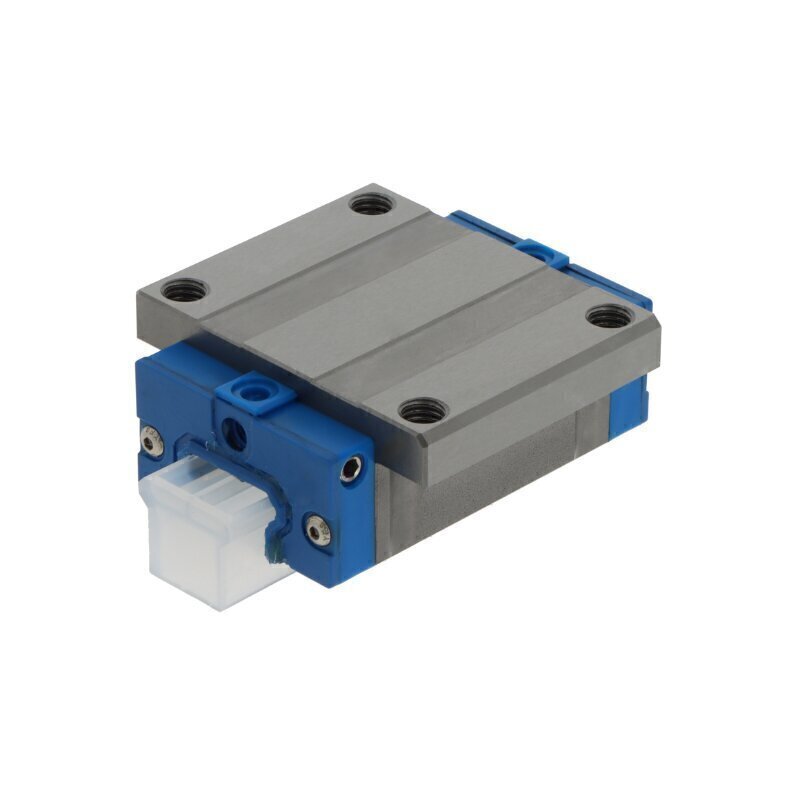

R200111306 KWD-015-FNS-C1-H-0 (NRII) Bosch Rexroth Carriage
The R200111306 KWD-015-FNS-C1-H-0 (NRII) Bosch Rexroth Carriage is a precision-engineered linear carriage designed for compact, high-accuracy motion control applications. This flange carriage combines advanced engineering with reliable performance to meet the demanding standards of industrial automation, machine tools, and precision positioning systems requiring superior accuracy in a compact form factor.
Key Specifications:
- Design: Flange carriage with standard design configuration
- Series: 15 series - ideal for compact and light to moderate-duty applications
- Tolerance Class: H (High-Precision Class) for superior accuracy and repeatability
- Rolling Elements: Ball type, arranged in double row configuration for smooth, consistent motion
- Preload: Light preload for smooth operation and reduced friction
- Material: Steel with anti-corrosion protection and plastic components for enhanced durability and corrosion resistance
- Seal Type: End seals for effective contamination protection
- Ball Chain: With ball chain for integrated load distribution and enhanced stability
- Lubrication: Can be relubricated via lubrication nipple for extended service life and easy maintenance
- Operating Temperature Range: -10 to +100°C
Applications:
This carriage is ideal for use in:
- Compact machine tool equipment requiring high-precision linear motion
- Semiconductor and medical device manufacturing positioning mechanisms
- Industrial automation systems with demanding accuracy requirements in limited space
- Precision positioning applications where smooth, low-friction motion is essential
- Systems requiring integrated ball chain stability and load distribution
- Corrosion-resistant environments where standard steel may be inadequate
The combination of high-precision tolerance class, light preload for reduced friction, integrated ball chain support, corrosion-resistant steel construction, and compact 15 series design makes this carriage an excellent choice for applications where precision, smooth operation, and space-efficient installation are essential.
