Quick Code: BB-523572

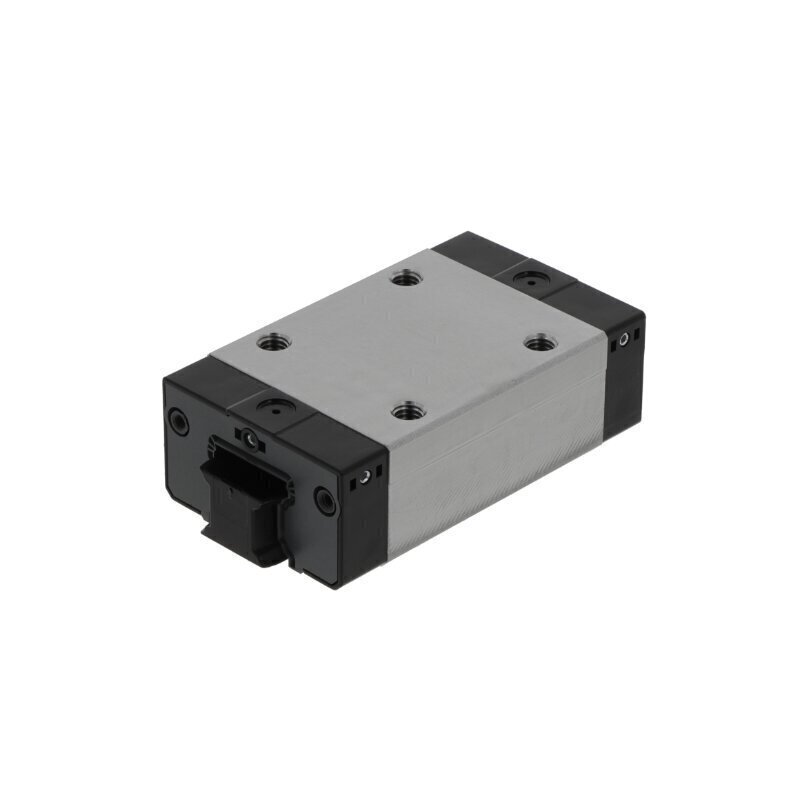

R169481410 KWC-020-SNN-C1-N-2 (CS) Bosch Rexroth Carriage
Also Try
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Bosch Rexroth
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Carbon Steel
Preload
Light preload
Seal
End Seals
Series
20 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Slimline and low design
Reference
R169481410KWC020SNNC1N2
Additional Reference:
10146041
Quick Order Code
BB-523572
Product Description
R169481410 KWC-020-SNN-C1-N-2 (CS) Bosch Rexroth Carriage
This compact block carriage from Bosch Rexroth is engineered for space-constrained linear motion applications, combining a specialized slimline and low design profile with reliable performance. The KWC-020-SNN-C1-N-2 model delivers exceptional versatility for applications where height and width limitations are critical factors, while maintaining consistent load capacity and precision for industrial automation and machinery systems.
Key Specifications:
- Series: 20 series (compact load capacity)
- Design: Block carriage with slimline and low design configuration
- Rolling Elements: Ball bearings in double row arrangement for balanced load distribution
- Preload: Light preload for enhanced precision and minimized play
- Tolerance Class: Normal Class
- Material: Carbon Steel with corrosion protection
- Operating Temperature Range: -10 to +100°C
- Seal Type: End seals for effective dust and contamination protection
- Lubrication: Can be relubricated via lubrication nipple for extended service life and reduced maintenance intervals
- Ball Chain: Without ball chain
Applications:
This carriage is well-suited for:
- Industrial automation equipment with severe space constraints
- Compact assembly and handling systems requiring low-profile design
- Lightweight machinery requiring minimal footprint and height clearance
- Precision motion control systems in space-limited production environments
- Equipment operating in standard industrial conditions with compact installation requirements
- Systems requiring ultra-compact, space-efficient linear guidance solutions
Reference: R169481410KWC020SNNC1N2
