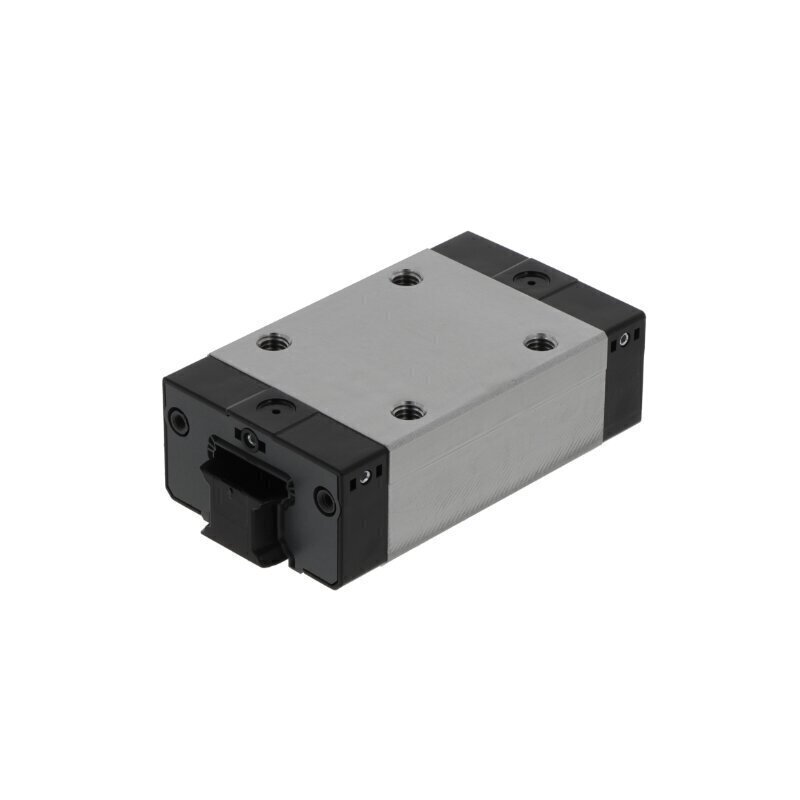

R169429311 KWC-025-SNN-C0-H-2 (CS) Bosch Rexroth Carriage
R169429311 KWC-025-SNN-C0-H-2 (CS) Bosch Rexroth Carriage
This precision-engineered linear carriage from Bosch Rexroth is designed for space-constrained applications requiring high accuracy and dependable linear motion performance. The KWC-025-SNN-C0-H-2 model features a compact slimline and low design configuration, making it an excellent choice for applications where vertical clearance and lateral space are limited, while maintaining superior precision standards.
Key Specifications:
- Series: 25 series
- Design: Block carriage with slimline and low configuration
- Rolling Elements: Double row ball bearings for smooth, consistent linear motion
- Preload: Without preload for minimal friction and free-running operation
- Tolerance Class: H (High-Precision Class) for superior accuracy and tight tolerances
- Material: Carbon steel construction for robust performance and durability
- Seal Type: End seals for effective contamination protection
- Lubrication: Relubrication capability via integrated lubrication nipple for extended service life and easy maintenance
- Operating Temperature Range: -10°C to +100°C
- Ball Chain: Without ball chain
Ideal Applications:
This carriage is particularly well-suited for precision linear motion systems where space optimization is critical, including:
- Compact industrial automation systems with height constraints
- Precision positioning equipment in confined spaces
- Medical device manufacturing requiring high accuracy in limited areas
- Semiconductor processing equipment with tight spatial requirements
- Laboratory and analytical instrument applications
- Compact CNC and machine tool systems
The combination of slimline design, high-precision tolerance class, and carbon steel construction makes this carriage an ideal solution for demanding applications where both spatial efficiency and accuracy cannot be compromised.
