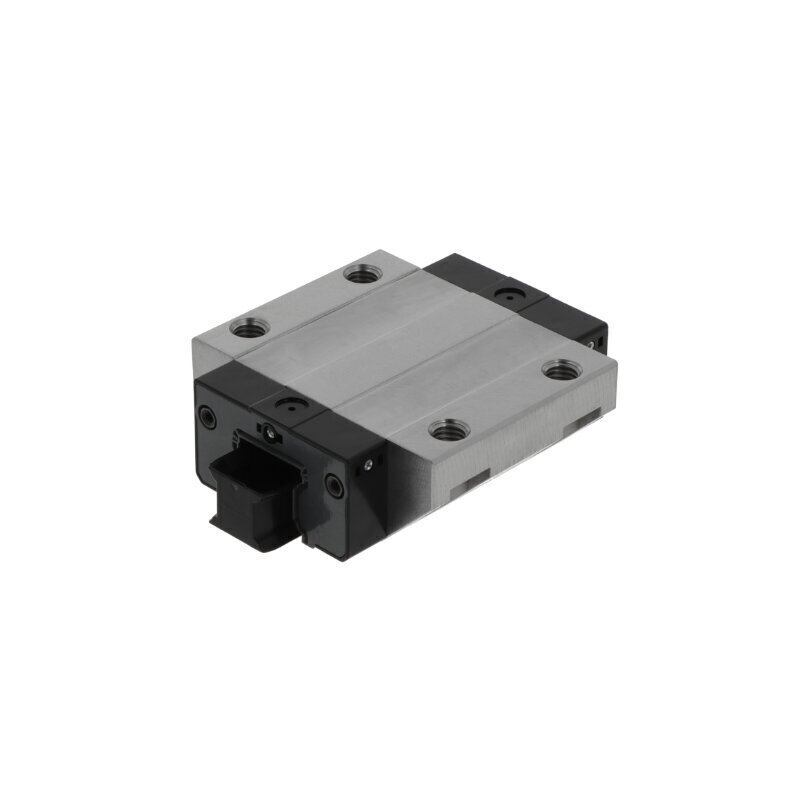

R169321310 KWC-025-FNN-C1-H-2 (CS) Bosch Rexroth Carriage
R169321310 KWC-025-FNN-C1-H-2 (CS) Bosch Rexroth Carriage
This precision-engineered flange carriage from Bosch Rexroth is part of the 25 series linear carriage range, specifically designed for applications requiring high accuracy in a compact, low-profile configuration. Featuring a low design version, this carriage delivers exceptional performance in space-constrained installations while maintaining superior precision tolerances, smooth operation, and reliable performance. With light preload configuration and double-row ball bearings, this carriage ensures consistent, precise motion ideal for advanced industrial automation and precision machinery systems.
Key Specifications:
- Series: 25 series - engineered for precision linear motion applications with balanced performance
- Design: Flange carriage in low design configuration for compact installation in height-limited environments
- Rolling Elements: Double-row ball bearings for smooth, consistent motion and efficient load distribution
- Preload: Light preload configuration for optimal balance between smooth operation and load-carrying capacity
- Tolerance Class: H (High-Precision Class) - delivering superior accuracy and repeatability for demanding precision applications
- Material: Carbon steel construction for exceptional strength, durability, and reliable long-term performance
- Sealing: End seals to protect against contamination and debris ingress, extending service life and ensuring consistent performance
- Operating Temperature Range: -10 to +100°C for reliable performance across diverse industrial environments
- Lubrication & Maintenance: Relubrication capability via integral lubrication nipple for convenient servicing and extended maintenance intervals
- Ball Chain: Without ball chain option for streamlined, simplified installation
Ideal Applications:
This carriage is perfectly suited for precision automation equipment, CNC machinery, high-precision assembly lines, optical and measurement equipment, semiconductor processing systems, robotic systems, and industrial machinery where compact design, high repeatability, and exceptional accuracy are essential. The low design configuration makes it particularly effective for applications with height constraints that still demand high-precision linear motion and reliable performance.
Reference: R169321310KWC025FNNC1H2
