R167152320 KWD-020-BNS-C2-H-1 (CS) Bosch Rexroth Carriage

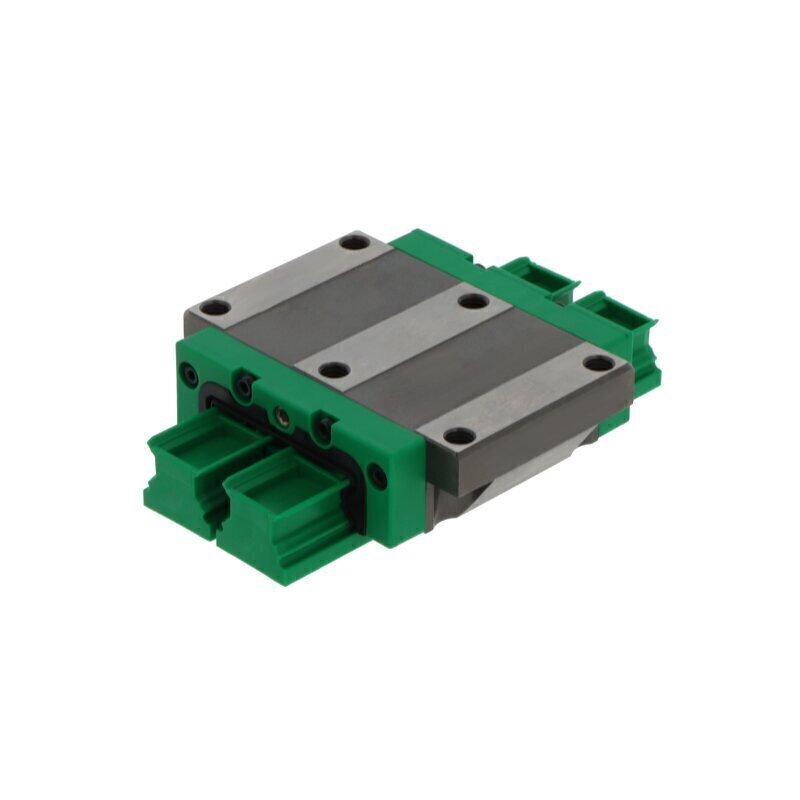

Bosch Rexroth R167152320 KWD-020-BNS-C2-H-1 (CS) Linear Carriage
This precision-engineered flange carriage from Bosch Rexroth is designed for demanding linear motion applications requiring high accuracy and reliability. The KWD-020-BNS-C2-H-1 model combines robust construction with advanced bearing technology to deliver exceptional performance in industrial automation and machinery systems.
Key Specifications:
- Design: Flange carriage with wide design configuration
- Series: 20 series – mid-range capacity for versatile industrial applications
- Rolling Elements: Double row ball bearings for balanced load distribution and smooth motion
- Preload: Medium preload for optimal rigidity and smooth linear operation
- Tolerance Class: H (High-Precision) – ensures tight accuracy requirements for precision-critical applications
- Material: Carbon steel construction for durability, strength, and reliable performance
- Sealing: End seals to protect against contamination and extend service life
- Operating Temperature: -10 to +100°C
- Lubrication: Regreasable via integrated lubrication nipple for extended maintenance intervals and consistent performance
- Ball Chain: Without ball chain
Ideal Applications:
This carriage is suitable for precision manufacturing equipment, automation systems, machine tools, and industrial machinery where high-precision linear motion with medium load capacities are required. The wide design configuration provides enhanced stability and lateral load capacity, making it particularly suitable for applications demanding accuracy and rigidity. The double-row ball arrangement ensures stable, consistent performance in both light to medium-duty industrial environments.
Reference Number: R167152320KWD020BNSC2H1
