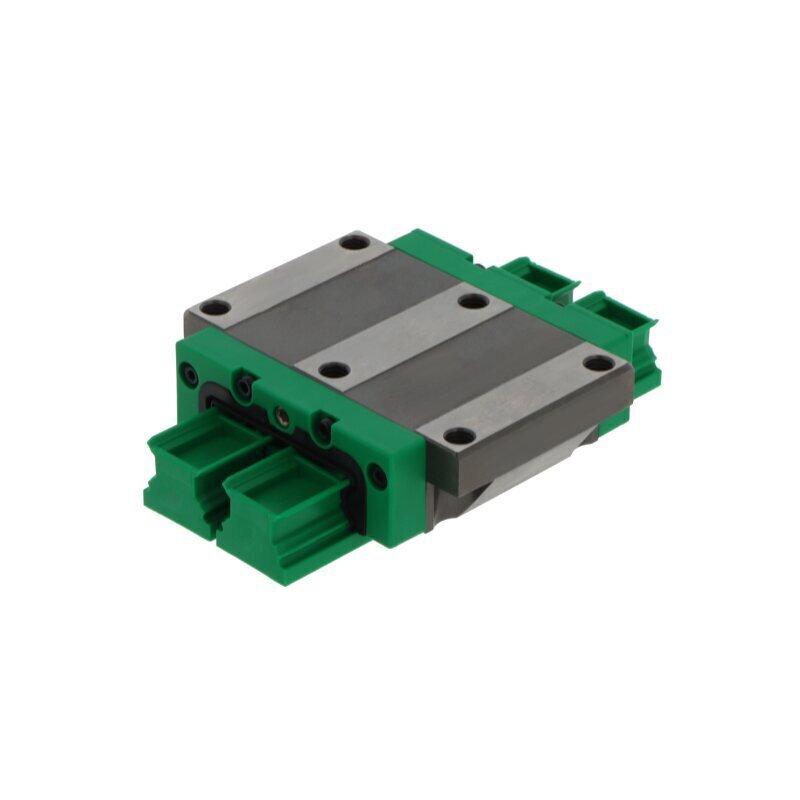

R167151320 KWD-020-BNS-C1-H-1 (CS) Bosch Rexroth Carriage
R167151320 KWD-020-BNS-C1-H-1 (CS) Bosch Rexroth Carriage
This compact precision linear carriage from Bosch Rexroth delivers exceptional performance in space-constrained applications, combining high-precision engineering with robust reliability. Part of the 20 series lineup, this flange carriage features a distinctive wide design configuration that provides enhanced stability and load distribution while maintaining a compact footprint ideal for precision machinery and automation systems.
Key Specifications:
- Series: 20 series (compact, versatile design)
- Design: Flange carriage with wide configuration
- Tolerance Class: H (High-Precision Class)
- Rolling Elements: Double row ball bearings for smooth, consistent motion and reliable performance
- Preload: Light preload for optimal load distribution and reduced operational noise
- Material: Carbon steel construction for durability and long service life
- Sealing: End seals for effective contamination protection
- Operating Temperature Range: -10 to +100°C
- Lubrication: Relubrication capable via integrated lubrication nipple
- Ball Chain: Without ball chain
Applications:
This carriage is ideal for compact industrial automation systems, precision positioning equipment, laboratory instrumentation, and machinery where space efficiency and high-precision motion control are essential. The wide design provides enhanced lateral stability, making it particularly suitable for applications requiring improved load distribution across compact linear motion systems. Perfect for assembly equipment, material handling systems, and precision measurement devices.
Maintenance Advantage:
The relubrication capability extends service life and reduces maintenance intervals, allowing for convenient upkeep through the dedicated lubrication nipple without requiring system disassembly.
