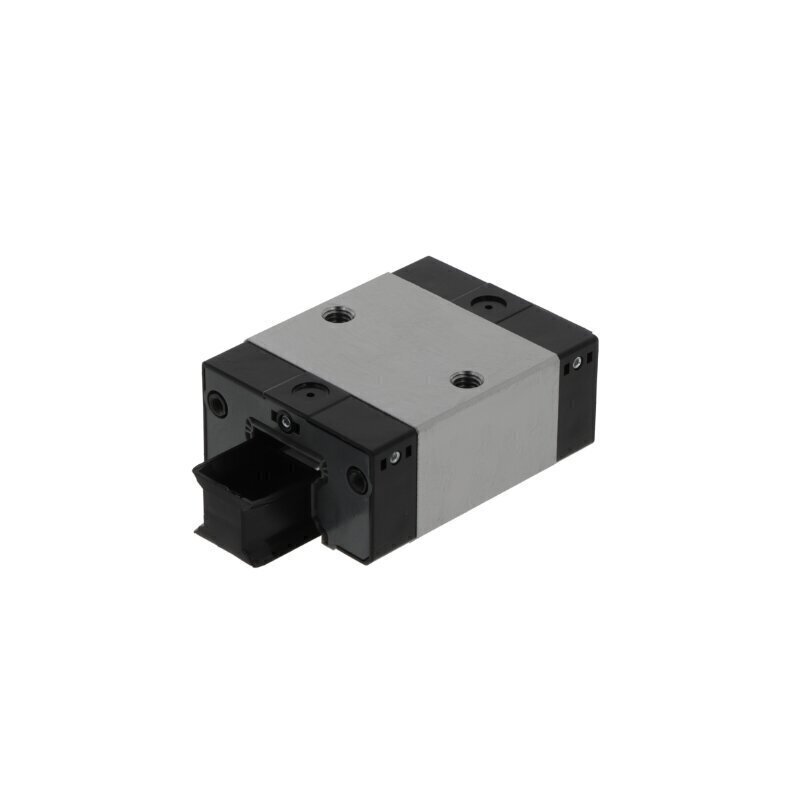

R166481410 KWC-020-SKN-C1-N-2 (CS) Bosch Rexroth Carriage
R166481410 KWC-020-SKN-C1-N-2 (CS) Bosch Rexroth Carriage
This compact block carriage from Bosch Rexroth is engineered to deliver reliable linear motion performance in highly space-constrained applications. Part of the versatile 20 series, this carriage combines precision construction with a narrow, low, and short design profile to provide cost-effective linear motion solutions for installations where minimal dimensional footprint is critical. The carriage maintains consistent operational performance without compromising on durability or reliability.
Key Specifications:
- Design: Block carriage configuration with narrow, low, short version for ultra-compact installations and tight spatial constraints
- Series: 20 series - proven platform for reliable industrial linear motion in compact applications
- Rolling Elements: Double row ball bearings for smooth, consistent linear motion with minimal friction and excellent load distribution
- Tolerance Class: Normal Class for general industrial applications and standard accuracy requirements
- Preload: Light preload for optimal balance between rigidity and smooth operation with reduced friction
- Sealing: End seals to protect against contaminants, debris, and environmental factors to extend service life
- Material: Carbon steel construction for excellent durability, strength, and reliable long-term performance
- Lubrication: Relubricatable via integrated lubrication nipple for extended service life and convenient maintenance
- Operating Temperature: -10 to +100°C for versatile environmental compatibility across diverse industrial settings
- Ball Chain: Without ball chain for simplified integration
Ideal Applications:
This carriage is particularly well-suited for:
- Compact industrial automation and machinery equipment with severe space limitations
- Miniaturized assembly machinery and precision equipment retrofits
- Conveyor systems and material handling in confined spaces
- Precision positioning systems requiring minimal profile heights
- Packaging machinery and labeling systems with restricted installation space
- Electronic component assembly and testing equipment
- General-duty automation applications demanding compact, reliable linear motion
The narrow, low, short design footprint combined with light preload configuration makes this carriage invaluable for ultra-compact installations where space efficiency is essential, while the double-row ball bearing design ensures dependable performance for standard accuracy requirements and moderate-duty operating conditions.
Reference: R166481410KWC020SKNC1N2 | Brand: Bosch Rexroth
