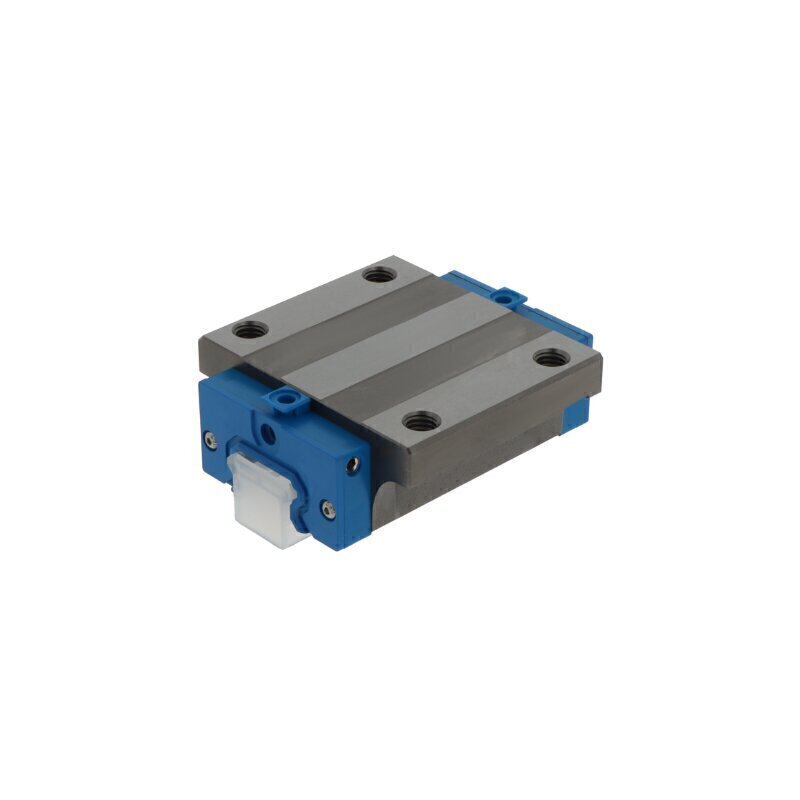

R165389420 KWD-020-FLS-C0-N-1 (CS) Bosch Rexroth Carriage
R165389420 KWD-020-FLS-C0-N-1 (CS) Bosch Rexroth Carriage
This versatile flange carriage from Bosch Rexroth is engineered for reliable linear motion applications demanding dependable performance and cost-effective operation. Part of the proven 20 series lineup, this carriage combines practical functionality with established engineering excellence to deliver consistent results across a wide range of industrial automation, machinery, and motion control systems.
Key Specifications:
- Series: 20 series compact platform
- Design: Flange carriage, long design configuration for extended travel distances and optimized space utilization
- Rolling Elements: Ball type, double row arrangement for smooth, consistent linear motion
- Preload: Without preload for applications where minimal friction and free movement are preferred
- Material: Carbon steel construction for durability and reliable performance in demanding environments
- Tolerance Class: Normal Class for standard accuracy requirements
- Seal Type: End seals for effective contamination protection
- Ball Chain: Supplied without ball chain option
- Operating Temperature Range: -10 to +100°C for versatile environmental compatibility
- Lubrication: Relubrication capability via integrated lubrication nipple for extended service life and reduced maintenance intervals
Ideal Applications:
This carriage is well-suited for general-purpose linear guidance systems, material handling equipment, standard automation machinery, and industrial applications where cost-effectiveness, reliability, and straightforward maintenance are important considerations. The long design flange configuration makes it particularly ideal for systems requiring extended stroke lengths, easy mounting, and seamless integration into existing frameworks and linear motion assemblies.
